How to Prevent Transformer Theft in Remote Power Distribution Networks

Introduction

Transformer theft can cause power outages, equipment replacement costs, network damage, and safety risks, particularly when transformers are installed in remote or unattended locations. Effective transformer theft prevention therefore requires more than a single physical security measure.

This guide explains practical transformer theft prevention methods, from physical barriers and anti-theft hardware to tamper detection, local alarms, remote monitoring, and response procedures. These measures can help utilities, EPC contractors, and power operators prevent transformer theft and improve the security of distribution transformers in rural and remote networks.

The same principles can also be applied when determining how to prevent transformer theft in industrial, agricultural, construction, and other outdoor installations.

Transformer Theft Prevention Methods at a Glance

Prevention Method	Main Purpose	Typical Application
Physical barriers	Restrict physical access	Outdoor transformers
Anti-theft hardware	Prevent unauthorized removal	Pole-mounted transformers
Tamper detection	Identify interference	Remote installations
Local alarms	Alert nearby personnel	Sites with local security
Remote monitoring	Provide remote visibility	Rural networks
Power-loss monitoring	Identify abnormal outages	Distribution networks
Multi-sensor protection	Combine multiple signals	High-risk installations
Response procedures	Enable timely intervention	Utility networks

Use Physical Security to Prevent Transformer Theft

Physical security is the first layer used to prevent transformer theft, particularly for outdoor and pole-mounted distribution transformers. These measures do not stop determined thieves, but they make access more difficult and increase the chance that an attempt will be noticed.

Transformer Enclosures

Locking enclosures, reinforced cabinets, and tamper-resistant housings protect transformers from unauthorized access. For pad-mounted and ground-level units, enclosure integrity is a critical first line of defense. Locks should be resistant to cutting and prying, and hinges should be shielded or welded to prevent removal.

Security Cages and Fencing

Security cages and fencing around transformers add a physical barrier between the equipment and potential thieves. Fencing is particularly useful at ground-level installations, construction sites, and industrial areas. A lockable gate or access panel ensures that only authorized personnel can reach the transformer.

Restricted Access

Limiting access to transformer sites reduces exposure. Where possible, transformers should be installed within controlled areas, and access should be restricted to maintenance and operations personnel. Clear signage indicating restricted access and warning of electrical hazards can also discourage unauthorized entry.

Anti-Climb Measures

For pole-mounted transformers, anti-climb measures help deter unauthorized climbing. These may include anti-climb guards, smooth pole surfaces, or restricted climbing points. While determined thieves may still attempt access, anti-climb measures increase the time and effort required, raising the risk of detection.

Use Anti-Theft Hardware

Anti-theft hardware is one of the simplest transformer theft prevention methods because it increases the difficulty and time required to remove or dismantle a transformer. These measures work alongside physical security and are particularly effective when combined with restricted access and routine inspection.

Anti-Theft Bolts

Anti-theft bolts are commonly used to secure transformer mounting structures, covers, enclosures, and other accessible components. They are designed to resist standard tools, making removal slower and more difficult.

Security Nuts

Security nuts use non-standard shapes or specialized removal tools. Because ordinary wrenches cannot grip them, they add an extra layer of protection against unauthorized disassembly.

Locking Devices

Locking devices secure cabinet doors, terminal boxes, and access panels. Heavy-duty padlocks, shielded locks, and locking bars help prevent forced opening.

Tamper-Resistant Fasteners

Tamper-resistant fasteners are designed to prevent or discourage removal. They may use one-way screws, break-away heads, or special drive patterns that require dedicated tools.

Mechanical Locks

Mechanical locks provide a physical barrier to unauthorized access. While they can be defeated, they increase the time required and raise the risk of detection — especially when combined with monitoring or routine inspection.

Add Tamper Detection

Physical barriers can delay unauthorized access, but they cannot always indicate that someone is attempting to interfere with a transformer. Tamper detection adds an electronic layer to transformer theft prevention by identifying events that may indicate an attempted theft or unauthorized intervention.

Vibration Detection

Vibration detection identifies abnormal mechanical impact or shock applied to the transformer body, enclosure, or mounting structure. Events such as forcible opening, cutting, hammering, or dismantling attempts can trigger an alarm.

Tilt and Movement Detection

Tilt and movement detection monitors changes in the transformer’s physical position or orientation. Lifting, tilting, or moving the transformer — including attempts to remove it from its installed location — can be detected and reported.

Enclosure Tampering

Enclosure tampering detection identifies unauthorized access to the transformer cabinet, terminal box, or internal components. Opening the enclosure, removing the cover, or interfering with internal wiring can trigger an alarm.

Cable Interruption

Cable interruption detection identifies sudden disconnection or cutting of incoming or outgoing power cables. This can indicate cable theft, unauthorized disconnection, or an attempt to isolate the transformer before removal.

Tamper detection does not replace physical security or routine inspection. It complements them by providing continuous awareness of events that may otherwise go unnoticed — particularly at remote or unattended sites.

Use Local Alarms for Immediate Warning

Local alarms provide an immediate warning at the transformer site. They typically include:

• Siren — a high-volume audible alarm that deters intruders and alerts nearby personnel
• Flashing light — a visual alarm signal suitable for nighttime or noisy environments
• Local audible alarm — combined sound and light for stronger warning effect
• Security personnel notification — alerting on-site staff or nearby security teams

Local alarms are useful when personnel or security staff are located close enough to respond to the event. They provide immediate, on-site warning and do not depend on remote communication or centralized platforms.

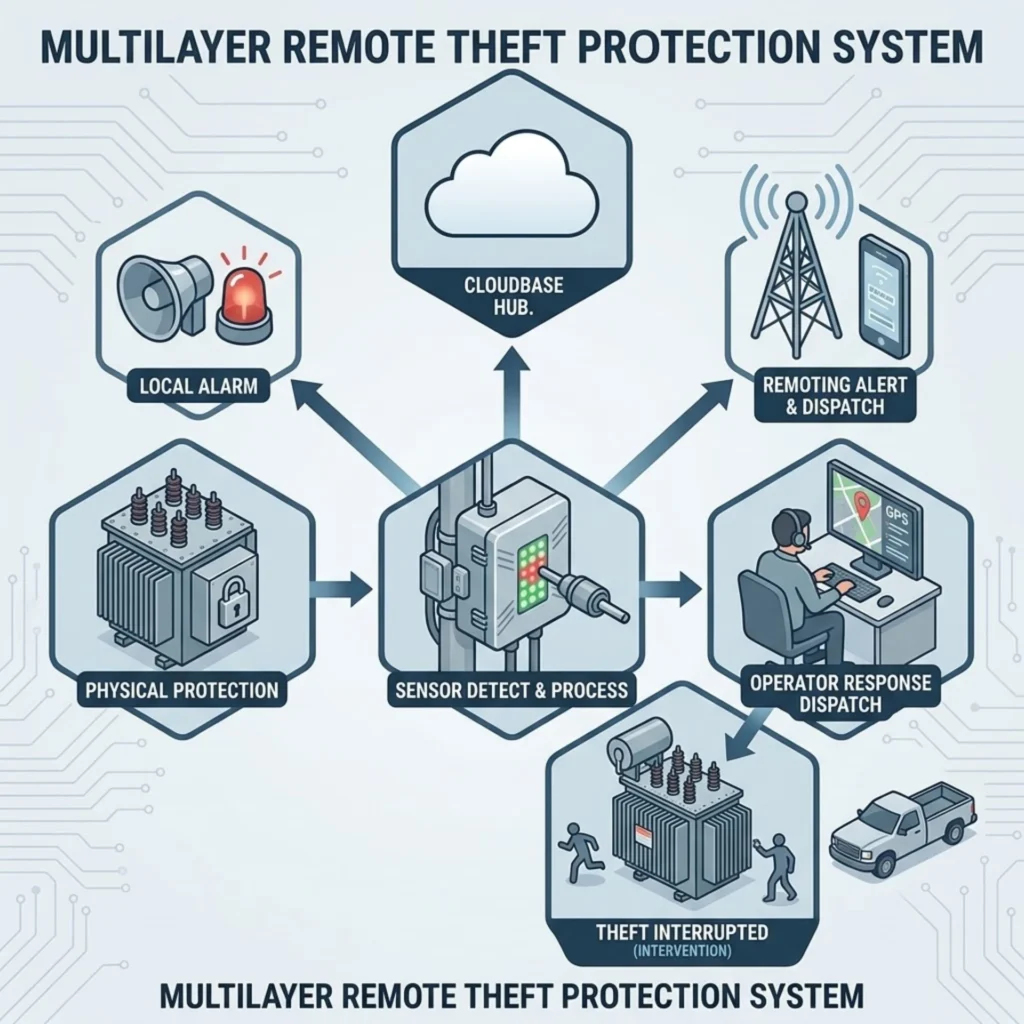

Use Remote Monitoring for Remote Transformers

For transformers installed in remote or unattended locations, physical security and local alarms may not provide sufficient visibility. Remote monitoring can extend transformer theft prevention beyond the physical site by sending abnormal-event information to operators or maintenance teams.

Power Loss Monitoring

Monitors the transformer’s power supply status and detects unexpected power loss, phase loss, or voltage abnormality. These conditions may indicate cable theft, unauthorized disconnection, or supply faults.

Remote Tamper Alerts

Detects enclosure opening, forced disassembly, tilting, or movement, and pushes alarm notifications remotely to operators.

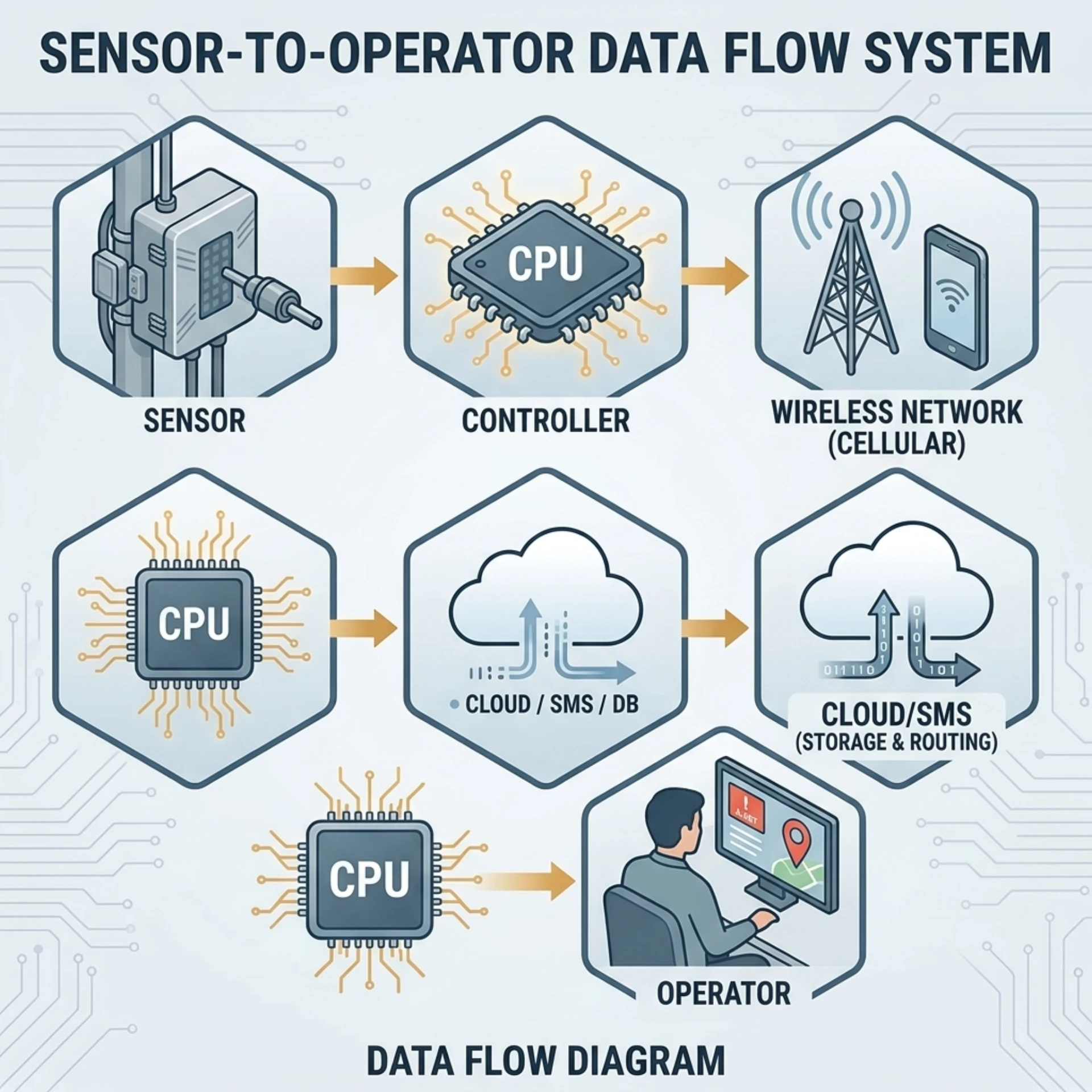

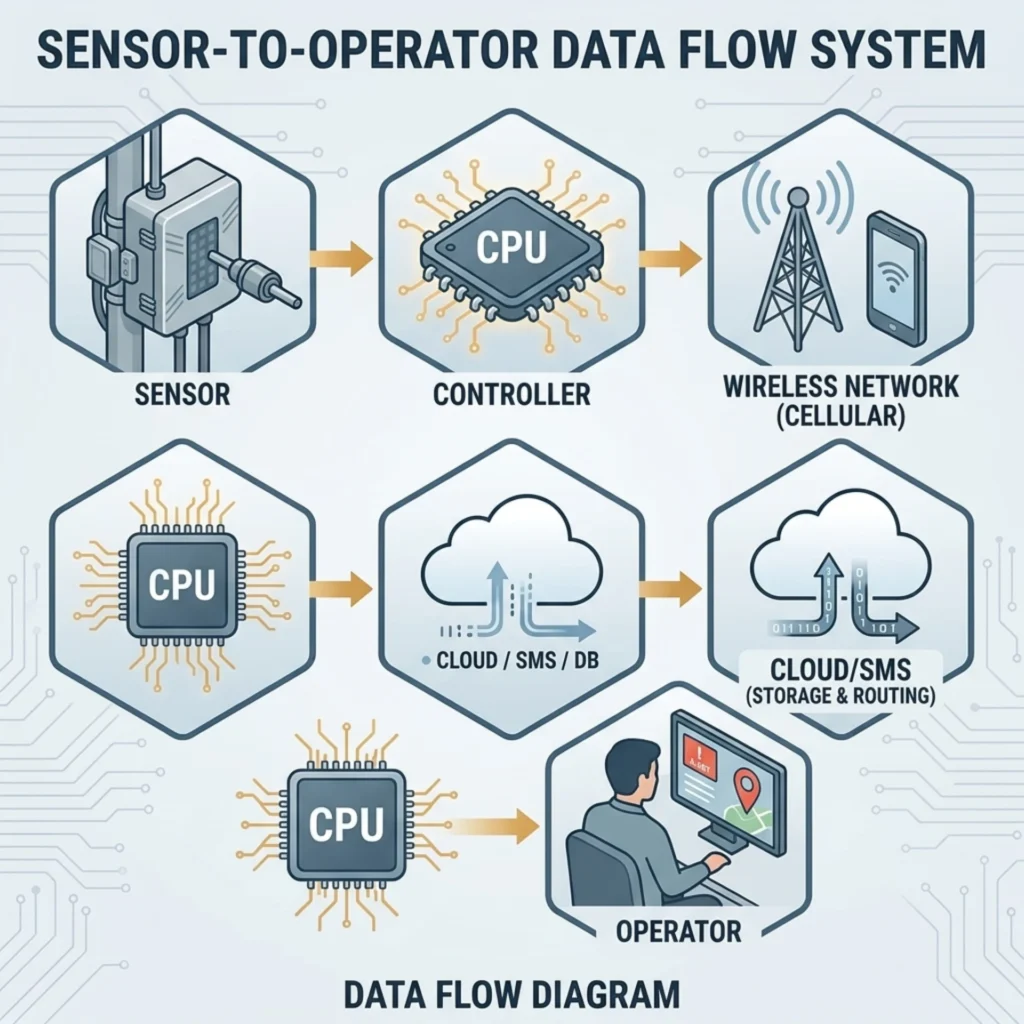

Communication and Alarm Transmission

Transmits alarm signals via GSM, 4G, or NB-IoT to SMS recipients, cloud platforms, or control centers, ensuring timely response even when no personnel are on site.

Remote Status Monitoring

Supports remote viewing of device status, battery status, communication status, and historical alarm records, enabling centralized management of multiple transformers.

Combine Multiple Sensors for Higher-Risk Sites

A single sensor may not distinguish theft-related events from normal maintenance or equipment faults. A multi-sensor approach can combine several signals to improve event verification.

Sensor / Signal	What It Can Indicate
Vibration	Physical impact or interference
Tilt	Transformer movement
Door / tamper	Unauthorized opening
Cable status	Cable cutting or disconnection
Power status	Unexpected outage
GPS / location	Unexpected movement where applicable

The appropriate combination depends on transformer type, installation environment, communication availability, and the required response time.

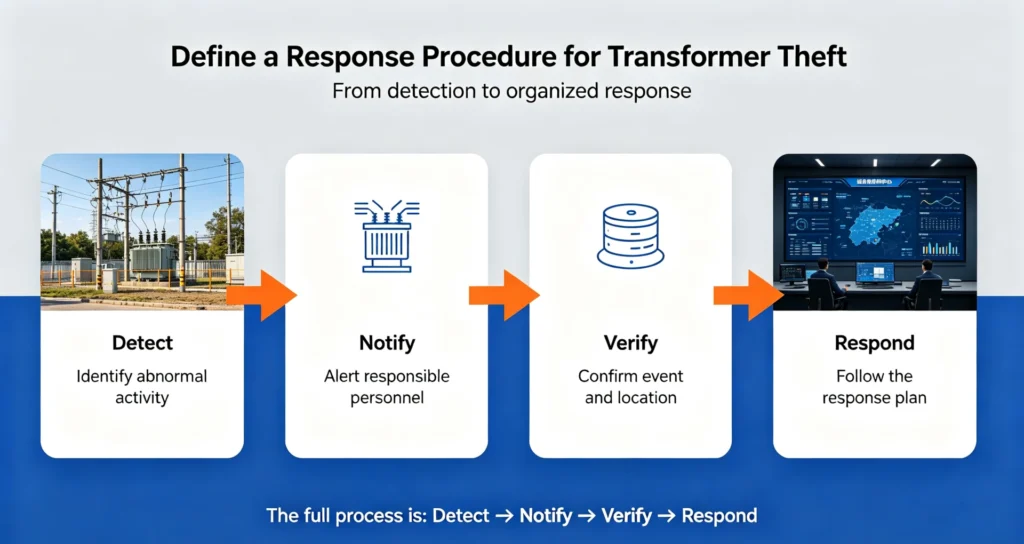

Define a Response Procedure for Transformer Theft

Prevention does not end with detection. The full process is:

Detect → Notify → Verify → Respond

Verify the Alarm

Confirm whether the alarm is genuine and rule out false alarms or equipment faults.

Notify Maintenance or Security Personnel

Notify the appropriate personnel or team based on the event type.

Check the Site Safely

Inspect the site under safe conditions, avoiding direct contact with potentially energized or damaged equipment.

Isolate the Affected Equipment When Required

If safety risks or equipment damage exist, isolate the affected equipment according to procedures.

Document and Investigate the Event

Record the event, alarm time, response actions, and site conditions for follow-up investigation and improvement.

How to Choose the Right Transformer Theft Prevention Measures

Site Condition	Recommended Prevention Layer
Urban / supervised	Physical security + inspection
Rural transformer	Physical security + tamper detection
Remote transformer	Physical security + remote monitoring
High-risk site	Multi-sensor + remote alarm
Pole-mounted transformer	Anti-theft hardware + tamper detection
Unattended network	Remote monitoring + alarm response

Prevent Distribution Transformer Theft

This phrase can appear naturally in the remote/rural section:

Utilities operating rural distribution networks can combine physical barriers, anti-theft hardware, tamper detection, and remote monitoring to prevent distribution transformer theft.

How to Protect Transformers From Theft

This phrase works well in the conclusion or selection section:

Understanding how to protect transformers from theft requires considering both the physical security of the transformer and the ability to detect abnormal events after installation. A layered approach is generally more practical than relying on a single protection method.

Frequently Asked Questions About Transformer Theft Prevention

Q: Can this be used as a distribution transformer anti-theft device?

A: Yes. The HF-T-601 is specially designed as an anti-theft monitoring unit for distribution transformers.

Q: Can it be used on pole-mounted transformers?

A: Yes. It supports outdoor installation and fits pole-mounted transformers perfectly.

Q: Can the device work as a remote transformer anti-theft device?

A: Yes. It works as a remote anti-theft monitor for unattended transformers via wireless communication.

Q: Does it detect transformer cable cutting?

A: Yes. It can detect cable cutting, wire breakage and tampering of transformer cables.

Q: Can the transformer theft monitoring device send remote alarms?

A: Yes. It will trigger remote alarms (SMS/4G cloud notification) once theft or cable cut is detected.

Q: How can I prevent transformer theft?

A: Combine physical barriers, anti-tampering sensors, remote monitoring and instant alarm notifications. Timely on-site response is also critical once alerts are triggered.

Q: What are the most effective transformer theft prevention methods?

A: Physical security, anti-theft hardware, tamper detection, alarm, remote monitoring and response.

Q: How can I protect transformers from theft in remote areas?

A: Deploy wireless remote monitoring devices to detect intrusion and equipment tampering. Set up automatic remote alerts for off-grid sites where regular manual patrols are limited. Combine hardware protection and fast alert notification to secure transformers in remote locations.

Q: How can utilities prevent distribution transformer theft?

A: Utilities can prevent distribution transformer theft by deploying integrated anti-theft monitoring systems, reinforcing physical protection, setting up alert workflows, and coordinating rapid field response when suspicious events occur.

Q: Can remote monitoring help prevent transformer theft?

A: Yes. Remote monitoring detects suspicious activities at an early stage and sends out alerts, allowing operators to take action before theft or damage is completed. It serves as an effective early warning layer.

Q: What should a transformer theft prevention system monitor?

A: Movement, tilt, vibration, power loss and tampering. Learn more on our Detection page.

Conclusion

Effective transformer theft prevention requires multiple layers rather than relying on a single security measure. Physical barriers and anti-theft hardware can make unauthorized removal more difficult, while tamper detection and local alarms can provide earlier warning.

The Smart Transformer Anti-Theft Monitoring Device (HF-T-601) strengthens comprehensive field protection by integrating multi-dimensional sensing and intelligent alert logic. For remote and unattended installations where routine patrols are limited, the device adds a critical security layer by remotely transmitting abnormal events including unexpected power loss, physical movement, tilt displacement, cable cutting and on-site tampering to the operations team in real time.

In practice, the right approach to prevent transformer theft depends on the transformer type, installation environment, accessibility, communication availability, and required response time. Utilities can deploy the HF-T-601 Smart Transformer Anti-Theft Monitoring Device to unify physical security, intelligent detection, on-site alarms, remote monitoring and standardized response procedures, forming a complete layered protection system to effectively protect distribution and pole-mounted transformers from theft and vandalism.
