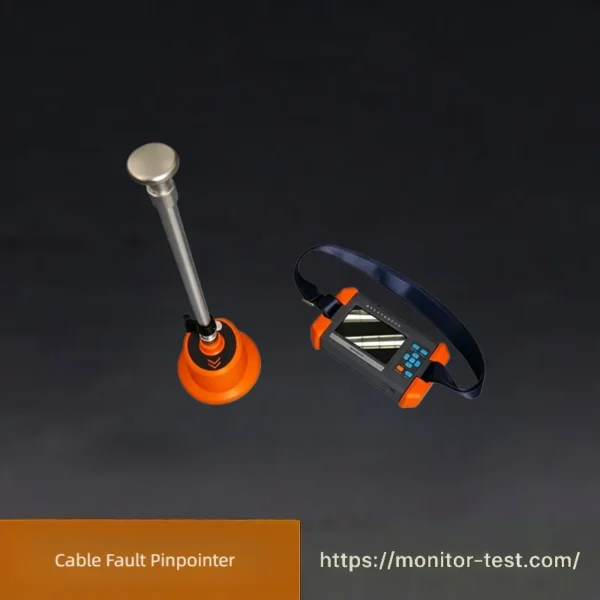

HF-CH-205 Cable Fault Pinpointer
This portable Cable Fault Pinpointer is specially used to accurately locate the exact underground cable fault point on the ground. Matched with cable fault locator, it completes whole fault detection work efficiently and stably for outdoor power engineering maintenance.
Send your requirements, we will quote for you within 12 hours
The Cable Fault Pinpointer is professional portable equipment for precisely locating underground power cable fault points on the ground. Equipped with acoustic-magnetic synchronization, magnetic field detection and optional step voltage modes, it verifies positions crosswise for high accuracy. With intelligent algorithms, noise reduction, adjustable filtering and automatic gain functions, it simplifies field operation and supports cable path tracing synchronously, widely used in power cable maintenance projects.
Product Features
- Integrates multiple pinpointing methods: acoustic-magnetic synchronization method, step voltage method (optional function) and magnetic field intensity method.
- Mutual verification among various pinpointing modes guarantees accurate and reliable fault positioning results.
- Adopts intelligent positioning algorithm that directly calculates acoustic-magnetic delay values, lowering operation requirements for technicians.
- Equipped with automatic mute function to prevent noise generated during sensor movement from damaging users’ hearing.
- Displays left/right direction indication of the tested cable, enabling cable path tracing while pinpointing faults.
- Four adjustable levels of audio channel filtering parameters to suppress ambient noise by selecting proper filter settings.
- Built-in background noise reduction technology effectively filters environmental interference, highlights discharge sounds at fault points and improves the precision of acoustic-magnetic delay measurement.
- Automatic gain control realizes self-adjustment of magnetic field triggering gain for simpler fault pinpointing operation.
Technical Parameters of Cable Fault Pinpointer
| Category | Items | Specifications |
|---|---|---|
| Acoustic-Magnetic Synchronous Pinpointing Function Audio Channel | Full Bandwidth | 100Hz ~ 1500Hz |
| Low-pass Bandwidth | 100Hz ~ 400Hz | |
| High-pass Bandwidth | 200Hz ~ 1500Hz | |
| Band-pass Bandwidth | 150Hz ~ 600Hz | |
| Max. Signal Gain | ≥ 80dB | |
| Pinpointing Accuracy | 0.1 m | |
| Magnetic Channel | Max. Signal Gain | ＞ 80dB |
| Step Voltage Pinpointing Function (Optional) | Maximum Amplification Factor | ＞ 80dB |
| Power Supply | Built-in Lithium Battery Pack | Rated Voltage:7.4V, Capacity:3400mAh |
| Continuous Working Time | More than 9 hours | |
| Charger Input | AC220V±10%, 50Hz | |
| Charger Rated Output | 8.4V DC, 2A | |
| Charging Time | Less than 4 hours | |
| Display | Screen Type | Transflective 320×240 color LCD |
| Environmental Protection | Waterproof Grade | IP65 |
| Dimension & Weight | Main Unit Size | 210mm × 95mm × 115mm |
| Main Unit Weight | 0.6 kg | |
| Sensor Weight | 1.4 kg |
Packing List：Cable Fault Pinpointer
| Serial No. | Description | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Main Control Host of Cable Fault Pinpointer | 1 | Set | With shoulder strap |
| 2 | Acoustic-Magnetic Integrated Ground Sensor Probe | 1 | Piece | Long measuring rod assembly |
| 3 | Step Voltage Test Electrode Kit | 1 | Set | Optional accessory |
| 4 | Dedicated Lithium Battery Charger | 1 | Piece | AC power adapter |
| 5 | English Operation Manual | 1 | Copy | Detailed operation & maintenance guide |
| 6 | Factory Calibration Certificate | 1 | Copy | For overseas project acceptance |
| 7 | Product Quality Certificate & Warranty Card | 1 | Set | After-sales guarantee document |
| 8 | Shockproof Portable Carrying Case | 1 | Piece | For transportation and storage |
FAQ for Cable Fault Pinpointer
Q1: What is the Cable Fault Pinpointer used for?
A: It is portable field equipment to pinpoint the exact underground cable fault point on the ground. It works together with cable fault locators to finish the whole cable fault locating workflow for power maintenance.
Q2: What pinpointing methods does this device support?
A: It supports acoustic-magnetic synchronization method, magnetic field strength method. Step voltage method is available as an optional extra function.
Q3: How accurate is the fault pinpointing precision?
A: The pinpointing accuracy can reach up to 0.1 meter, which can lock the fault position precisely on the ground surface.
Q4: How many filter modes are equipped for the audio channel?
A: Four adjustable filter ranges: full band, low pass, high pass and band pass. Users can switch freely to suppress surrounding ambient noise effectively.
Q5: What is the benefit of background noise reduction & automatic mute function?
A: Background noise reduction highlights fault discharge sound clearly. Automatic mute eliminates extra noise produced while moving the sensor, protecting your hearing during long-time work.
Q6: Can the instrument detect cable path while locating faults?
A: Yes. It provides left-right direction indication of the cable route, allowing you to trace the buried cable path synchronously during fault pinpointing.
Q7: Does the machine adopt automatic gain adjustment?
A: Sure. It features automatic magnetic field trigger gain control, no need for manual repeated adjustment, greatly simplifying field operation.
Q8: What is the continuous working time of the built-in battery?
A: Built-in 7.4V 3400mAh lithium battery supports over 9 hours of continuous working time. Full charging takes less than 4 hours.
Q9: Is the device suitable for outdoor rainy construction sites?
A: It carries IP65 waterproof rating, adapting to various harsh outdoor weather conditions. The transflective color screen can be viewed clearly under strong sunlight.
Q10: What are the dimensions and weights of the whole set?
A: Main unit: 210×95×115mm, weight 0.6kg; sensor probe weight: 1.4kg, overall lightweight and easy to carry.
