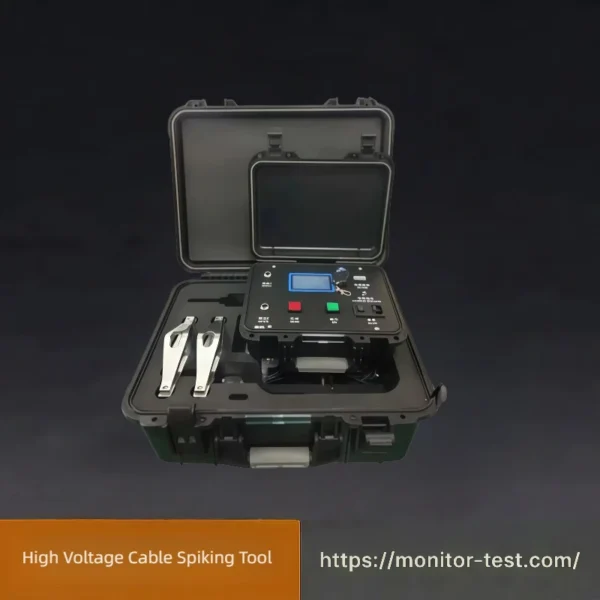

HF-CH-219 High Voltage Cable Spiking Tool

Name: HF-CH-219 High Voltage Cable Spiking Tool - Houfeng
Brand: Houfeng
SKU: HF-CH-219

Table of Contents

Overview

Fatal accidents often occur in China’s power system when workers mistakenly cut live cables. This equipment addresses such risks. It adopts remote/automatic spiking unit to perform destructive puncture on target cables on site. If the cable is energized, arcing and explosion will occur during spiking; otherwise, the cable is de-energized.

During power cable construction, relocation or fault maintenance, cables usually need to be cut. To guarantee operator safety, on-site cable identification is mandatory, especially verifying whether the cable carries voltage before cutting.

Common on-site cable identification methods include checking original construction records and testing via cable live-line detectors. Currently, mechanical puncture is the only reliable method to judge energized status: manual mechanical spiking and remote automatic spiking, which creates short-circuit to ground or phase-to-phase.

Product Features

When the included angle of two spiking guns is not 120°, at least one gun can complete spiking and form a short-circuit point.
Supports wired & wireless dual control, capable of remote control through walls.
Suitable for both AC and DC systems; built-in lithium battery pack and high-capacity energy storage unit for long continuous operation.
Integrated with real human voice prompts and LCD synchronous display for easy operation.
Compact size and light weight, highly suitable for field outdoor use.

Technical Parameters

Spiking Gun: 2 units
Remote Control Distance: Over 10 meters, supports through-wall remote operation
Control Cable Length: 5 m
Clamp Range: φ30–150 mm
Power Supply: Charging AC 220V/50Hz; built-in battery supports over 10 hours continuous work
Controller Dimension: 270×230×120 mm, Weight: 2.5 kg
Complete Set Dimension: 470×380×210 mm, Weight: 15.5 kg (dual-gun version)

Spiking Pin Specification Table

Cable Diameter (mm)	30–40	50–60	70–80	90–100
Spiking Pin Model	PS27C8	PS37C8	PS47C8	PS52C8

Cartridge Power Grade Table

Grade	Black	Blue	Yellow	Red (Recommended)	≤35kV Cable	Above 35kV Cable
Power Level	Minimum	Low	Medium	High	Use S1 Yellow	Use S1 Red (6.8×1 mm)

Standard Accessories:

50 pcs S1 Red (Grade 5 power) cartridges; 50 pcs PS52C8 spiking pins

Working Principle

The HF-CH-219 High Voltage Cable Spiking Tool consists of spiking guns and a controller. The spiking gun is a low-speed piston-type special device designed for cable spiking. It features compact structure and flexible mounting at any angle.
The controller adopts high-performance electronic detection circuits. The tool remotely launches a metal pin to short-circuit the cable. If the cable is live, obvious arcing and discharge will appear. If no discharge occurs, the cable is confirmed de-energized.

A single gun can only generate one short-circuit point on the cable, while dual guns create two points. Three-phase cables are normally arranged in triangular formation. Single-point spiking may hit the gap between phases without penetrating conductors, failing to form effective short-circuit.
Dual-gun configuration is recommended. When the included angle is not 120°, at least one gun can successfully puncture and create a reliable short-circuit.

FAQ for High Voltage Cable Spiking Tool

Q1: What is a High Voltage Cable Spiking Tool used for?

A: It safely verifies whether underground power cables are energized. Remote controlled puncture creates short circuit; visible arcing means live cable, protecting staff before cutting or maintenance.

Q2: Why choose dual-gun design instead of single gun?

A: Three-phase cables are laid in triangular layout. Single gun may strike phase gaps and fail short-circuit. Dual guns ensure at least one pin penetrates conductors when angle is not 120°.

Q3: What cable diameter range can this tool adapt to?

A: The clamp fits cables from φ30 mm to φ150 mm. Matching spiking pins are available for different cable outer diameters.

Q4: Does it support both wired and wireless remote operation?

A: Yes. It supports wired and wireless dual control, and enables through-wall remote operation to keep operators at a safe distance.

Q5: Can it test both AC and DC power cables?

A: The unit works for both AC and DC cables. Please select proper cartridge power according to cable voltage class.

Q6: How long can the built-in battery work continuously?

A: With fully charged internal lithium battery, continuous working time exceeds 10 hours. Charging input is AC 220V/50Hz.

Q7: What is the maximum remote control distance?

A: Wireless remote distance is more than 10 meters, supporting through-wall operation. The wired control cable length is 5 meters.

Q8: What cartridges and spiking pins come as standard?

A: Standard supply: 50 pcs S1 Red (Grade 5) cartridges and 50 pcs PS52C8 spiking pins. Other pin models are optional.

Q9: Is this equipment suitable for outdoor field work?

A: Compact size and lightweight. Equipped with voice prompt and LCD display, easy to operate in outdoor substation and road construction sites.

Q10: Which cartridge should be used for cables above 35kV?

A: S1 Red cartridge (6.8×1 mm) is recommended for cables above 35kV; S1 Yellow cartridge applies to cables of 35kV and below.

Q11: What safety precautions should be followed during spiking?

A: Keep personnel away from cable puncture position. Wear proper PPE. Confirm the target cable identity before triggering. Never aim at irrelevant equipment.

Q12: What are alternative names of this tester?

A: Cable Spiking Device, Underground Cable Live Detector, Cable Puncture Tool, Remote Cable Spiker.
