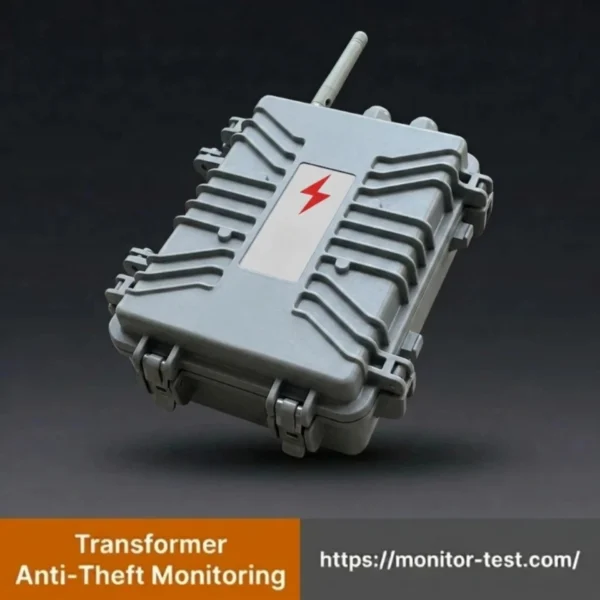

HF-T-601 Smart Transformer Anti-Theft Monitoring Device

The HF-T-601 is a smart transformer anti-theft monitoring device designed to protect unattended distribution transformers, pole-mounted transformers and outdoor power distribution equipment from theft, tampering and malicious damage.

The device detects abnormal vibration, transformer tilting, cable cutting, enclosure tampering and power loss, then sends alarms through GSM, 4G or NB-IoT communication networks. Local sound and light alarms can deter intruders, while remote cloud and SMS notifications allow utility operators to respond quickly.

It is particularly suitable for rural distribution networks, remote substations, agricultural power systems, construction sites, mining areas and other locations where regular physical patrols are difficult.

What Is a Transformer Anti-Theft Monitoring Device?

A transformer anti-theft monitoring device is a specialized protection system designed to safeguard distribution transformers, pole-mounted transformers, and outdoor power equipment from theft, vandalism, and unauthorized tampering.

Distribution transformers are prime targets for thieves due to their remote locations, lack of physical surveillance, and the high black-market value of copper windings and insulating oil.

This transformer theft monitoring device continuously monitors physical and electrical parameters—including vibration, tilting, enclosure opening, cable cutting, and power loss—any of which may indicate an attempted theft.

Upon detecting an anomaly, it triggers a local sound-and-light alarm to deter intruders, while simultaneously sending real-time alerts via GSM, 4G, or NB-IoT to operators and cloud platforms.

Unlike generic alarm systems, this transformer theft monitoring system distinguishes theft from legitimate events (e.g., maintenance or grid faults), reducing false alarms. It operates autonomously in harsh outdoor conditions, includes backup power for reporting during outages, and supports geolocation for rapid response dispatch.

In essence, it protects critical energy assets, prevents revenue losses, and ensures reliable electricity supply.

Why Do Distribution Transformers Need Anti-Theft Monitoring?

Distribution transformers are inherently vulnerable due to their typical installation environment. They are predominantly deployed in remote rural areas, along roadside poles, or at the outskirts of industrial zones—locations without fencing, cameras, or on-site security. This makes them easy targets for criminals seeking valuable materials.

Copper windings command high prices on the black market, while transformer oil is also illegally siphoned for resale. In many cases, thieves dismantle the enclosure, cut internal cables, or displace the entire unit to extract copper coils. Such vandalism leads to costly equipment replacement and unplanned power outages that disrupt farms, factories, and local communities. A smart transformer anti-theft device addresses these risks by providing real-time detection and instant alerts, even in the most isolated locations.

Manual inspection offers little relief: utility patrol teams cover vast territories with limited manpower, making it nearly impossible to monitor every transformer around the clock. By the time an outage is reported and a crew dispatched, the thieves have fled and the damage is done.

For these reasons—remote siting, unattended operation, high material value, and inadequate physical protection—distribution transformers urgently require a dedicated distribution transformer anti-theft device capable of real-time detection and immediate alerting.

How Does a Transformer Anti-Theft Monitoring Device Work?

The device operates by continuously monitoring the physical and electrical status of the transformer through a suite of embedded sensors. When an abnormality is detected, the onboard controller processes the signal, activates a local alarm, and simultaneously transmits alerts via wireless networks to operators and cloud platforms for rapid response.

Vibration Detection

The device is equipped with high-sensitivity accelerometers that detect abnormal vibrations caused by hammering, drilling, or mechanical attempts to break into the transformer enclosure. Any vibration pattern exceeding preset thresholds triggers an immediate alert, allowing operators to respond before significant damage occurs.

Tilt and Displacement Detection

Using built-in tilt sensors, the device monitors the transformer’s physical orientation. Significant changes in inclination or unexpected movement indicate that thieves are attempting to lift, drag, or displace the entire unit—often a preliminary step before dismantling it for copper extraction. The device reports such events in real time.

Cable Break Detection

The device continuously monitors the integrity of incoming and outgoing power cables. A sudden open-circuit condition, loss of continuity, or abnormal current drop suggests that cables have been cut to isolate the transformer from the grid—a common tactic used by thieves to disable live components before tampering. The device detects this and triggers an alarm.

Power Loss Detection

Built-in backup power ensures that the device remains operational even when the transformer loses mains supply. Upon detecting a sudden power loss, the device immediately reports the event via its wireless communication module, distinguishing between a grid outage and a theft-related disconnection, and provides geolocation data to guide rapid dispatch.

Tamper Detection

Magnetic reed switches or micro-switches installed on enclosure doors and access panels detect unauthorized opening. Any attempt to force open the transformer housing triggers an alert. This feature is particularly effective against thieves who try to access internal copper windings or drain insulating oil without fully displacing the unit.

Remote Alarm Transmission

All detected events are transmitted in real time using GSM, 4G, or NB-IoT communication modules. The device sends formatted alarm messages to utility control centers, cloud-based management platforms, and designated mobile phones via SMS. This wireless capability ensures that even transformers in the most remote locations remain connected and monitored.

System Workflow



Transformer Anti-Theft Monitoring Device vs Traditional Protection

Core Functions

Multi-dimensional Abnormality Perception

Equipped with vibration sensor, tilt angle sensor, anti-theft bolt sensor and wire break detection module, this anti-theft monitor accurately identifies illegal disassembly, violent impact, tilt & displacement and protective cable cutting of transformers. The alarm response time is less than 30 seconds with nearly zero missing alarms.

Local Acoustic & Light Deterrence

Once an abnormality is detected, the system immediately activates a siren louder than 110 decibels together with red and blue flashing warning lights, creating an on-site deterrent against thieves and greatly lowering the success rate of theft.

Multi-channel Remote Alarm

Adopting industrial-grade GSM/4G/NB-IoT communication modules, it sends bilingual Chinese & English alarm SMS to up to 20 preset administrator phone numbers, makes automatic cyclic alarm calls, and uploads alarm information including precise location and alarm type to the cloud monitoring platform simultaneously.

Intelligent Power Grid Status Monitoring

It supports real-time detection of three-phase four-wire power supply circuits to accurately identify single-phase power failure, phase loss and abnormal voltage. When the external power supply is maliciously cut off, the built-in backup battery automatically switches on to keep the device running continuously.

Anti-tampering & Self-check Functions

The host features a fully sealed anti-disassembly structure. Forced alarm will be triggered immediately if the main unit is pried open or damaged illegally. The system conducts regular self-inspection and automatically reports battery level, signal strength and operating status to give early warning of potential faults.

Optional Extended Functions

Expandable modules including infrared human body detection, on-site snapshot capturing, GPS/Beidou positioning and solar auxiliary power supply are available to meet customized protection demands for diverse application scenarios.

Main Technical Parameters

Item	Specification
Communication Mode	Optional industrial-grade GSM 900/1800MHz, 4G Cat.1, NB-IoT
Alarm Response Time	≤30s
Local Siren Volume	≥110dB
Input Working Voltage	Adaptive to AC220V / AC380V three-phase four-wire system
Backup Battery	DC3.6V 10000mAh special high-energy lithium battery
Standby Duration Without External Power	3–5 years
Operating Ambient Temperature	-40℃ ~ +75℃
Enclosure Protection Grade	IP55
Impact Resistance	58.5J
Maximum Preset Alarm Numbers	20
Alarm SMS	Customizable Chinese & English, including detailed address, longitude & latitude and alarm type
Standby Power Consumption	≤0.6W
Antenna	Built-in high-gain 3dB omnidirectional antenna
Overall Dimension	290×180×130mm
Gross Weight	Approx. 3.2kg

Installation Instructions

1. Host Fixation: Fasten the monitoring host firmly to utility poles or metal brackets near the transformer with dedicated anti-theft bolts. The recommended installation height is above 2.5 meters from the ground to prevent unauthorized access.
2. Sensor Layout: Attach the vibration sensor tightly to the transformer metal shell; install the tilt sensor horizontally; wind the dedicated anti-theft protection cable around the transformer top cover and bolt positions, then connect both ends to corresponding interfaces on the host.
3. Power & Communication Debugging: Connect to the three-phase power supply and confirm the power indicator is on. Send a remote debug SMS to verify normal communication signal and test the alarm function of all sensors.
4. Arm Operation: After debugging, activate arming via host buttons or remote instructions. The device enters normal monitoring mode 30 seconds later. A single unit can be fully installed by one person within 30 minutes with no complicated tools required.

Packaging & Logistics

Packaging Standard

Each unit is individually packed with thick shockproof pearl cotton and heavy-duty export carton, accompanied by English user manual, installation accessory kit and certificate of conformity. Bulk orders are reinforced with export-exempt solid wood pallets to avoid collision damage during transit.

Logistics Options

Sea freight, air freight and international express are all supported. Shipment can be arranged from major domestic ports, and door-to-door delivery is available upon customer request with real-time tracking throughout transportation.

Transportation Assurance

All delivered products are covered by cargo insurance. Free replacement or compensation will be provided for damaged or lost goods during shipment to eliminate clients’ logistics risks.

Lead Time

In-stock standard models can be shipped within 7 working days. Customized versions take 15–20 working days, with production schedule adjustable according to project progress.

Reasons to Choose Our Products

1. Proven Industrial-grade Quality The product has been massively deployed in domestic power grid projects and verified under harsh outdoor conditions for over a decade. Its false alarm rate is lower than 0.1% with stability far above industry average and a service life of more than 5 years.
2. Powerful Customization Support Customization is available for communication bands, alarm languages and functional modules to adapt to local mobile network frequencies and security standards in different countries and regions, satisfying differentiated project requirements.
3. Great cost-effectiveness: We are a direct source supplier, providing overseas buyers with favorable factory prices and bulk purchase discounts to optimize your total project expenditure.
4. Full Lifecycle Technical Support English technical documents and remote video guidance are provided. Local language technical docking service is available for overseas projects. The main unit enjoys a 2-year free warranty plus lifelong firmware upgrade support to remove after-sales worries.
5. Rapid After-Sales Service A dedicated foreign trade team provides 7×24-hour consultation covering scheme selection, order follow-up and after-sales troubleshooting to ensure smooth project implementation.

FAQ

Q1: Can the Transformer Anti-Theft Monitoring Device work normally in remote field areas without external power supply?

A1: Yes. Equipped with a large-capacity special lithium battery, it runs continuously for 3–5 years without external power. A solar panel can be connected for permanent power supply for totally off-grid remote sites.

Q2: Is the Transformer Anti-Theft Monitoring Device compatible with local mobile communication networks?

A2: We pre-adapt the GSM/4G/NB-IoT frequency bands of local mainstream operators based on clients’ countries and regions and complete communication debugging before delivery, so the device can connect to the network directly after installation.

Q3: Can alarm SMS and prompts be translated into local languages?

A3: Yes. We customize SMS content and platform interface languages as required. Besides English, Spanish, French, Arabic and other languages are supported.

Q4: Is the centralized monitoring management software available for bulk orders?

A4: Yes. Cloud-based alarm management software for multi-device unified control is provided free of charge for bulk purchasers, supporting electronic map positioning, historical alarm record query and remote batch management.

Q5:Will the Transformer Anti-Theft Monitoring Device malfunction outdoors in heavy rain or high temperature?

A5: With IP55 fully sealed waterproof and dustproof structure and operating temperature range of -40℃ to +75℃, it operates reliably in extreme environments including deserts, frigid zones and rainy areas.

Q6: Will the Transformer Anti-Theft Monitoring Device fail to send alarms if thieves destroy the antenna intentionally?

A6: The antenna is built inside the alloy housing with no exposed parts. Anti-tampering alarm will trigger immediately once the enclosure is broken by force, so alarm transmission cannot be disabled by antenna damage.
