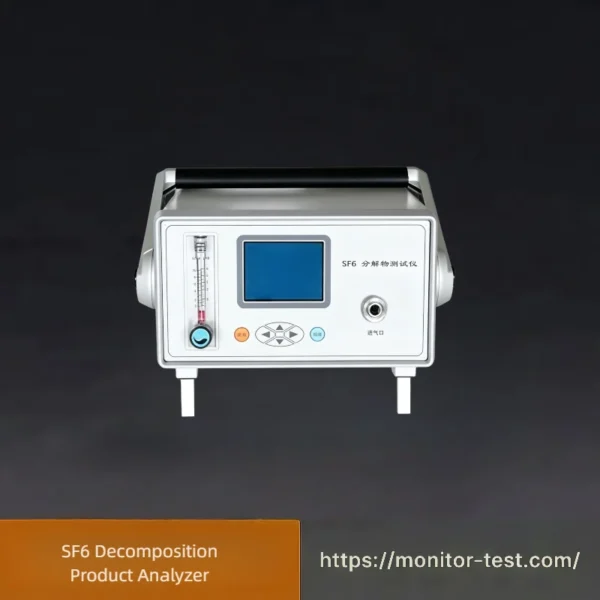

HF-WC-621 SF6 Decomposition Product Analyzer
This portable SF6 Decomposition Product Analyzer accurately measures key decomposed gases including SO₂, H₂S and CO inside gas-insulated high voltage equipment. It helps technicians discover early internal faults of GIS and circuit breakers, widely adopted for routine maintenance and fault diagnosis in power substations worldwide.
Send your requirements, we will quote for you within 12 hours
The SF6 Decomposition Product Analyzer is professional testing equipment for power system maintenance. It quantitatively detects characteristic decomposed gases including SO₂, H₂S and CO. These gases are produced when SF6 insulating gas has partial discharge or overheating faults inside GIS, circuit breakers and other high-voltage electrical equipment.
By analyzing the concentration of decomposition by-products, workers can accurately identify internal insulation defects and hidden faults in advance to remove safety risks and guarantee stable operation of substations. Featuring portable design, fast response and intuitive display, it is perfectly applicable to on-site field inspection for power stations.
Product Parameters
- Gas Measuring Range & Sensitivity
| Gas Component | Measuring Range | Sensitivity |
|---|---|---|
| SO₂ | 0–100 μL/L | ±0.1 μL/L |
| H₂S | 0–100 μL/L | ±0.1 μL/L |
| HF | 0–10 μL/L (Optional) | ±0.1 μL/L |
| CO | 0–100 μL/L | ±0.1 μL/L |
- Response Time: 45 seconds
- Sampling Configuration: Built-in pressure regulator, filter and flowmeter; equipped with 3.6m sampling tube and one pressure reducing valve connector
- Operating Temperature: -20℃ ~ 50℃
- Power Supply: 220VAC±10%, 50Hz, AC/DC dual-purpose; with overcharge protection, continuous working duration ≥ 10 hours
- Display: Large graphic LCD screen, resolution up to 0.1% for SF6 measurement
- Dimensions: 258mm × 240mm × 88mm
- Weight: Approx. 2.4 kg
- Output Interface: USB 2.0
- Sampling Flow Rate: 0.01~1 L/min
Product Features
- Long-life detection sensor module
- Built-in fault diagnosis function: Automatically diagnose equipment faults and offer solutions based on measured concentrations of SO₂ and H₂S
- Direct sensor measurement, no colorimetric tube required
- High measurement accuracy and excellent repeatability
- Equipped with built-in pressure stabilizing valve & electronic mass flowmeter
- Large LCD display screen
- Compact, lightweight and easy to carry & operate
- Rechargeable battery powered, supports both AC and DC power supply
- Fast response speed, almost no preheating waiting time
- Measuring results will not be affected by ambient temperature changes
Packing List: SF6 Decomposition Product Analyzer
| Quantity | Unit | Item Description |
|---|---|---|
| 1 | Set | SF6 Decomposition Product Analyzer Main Unit |
| 1 | Pc | 3.6m Sampling Hose |
| 1 | Pc | Pressure Reducing Valve Connector |
| 1 | Pc | External AC Power Adapter |
| 1 | Pc | Detailed English Operation Manual |
| 1 | Pc | Factory Calibration Certificate |
| 1 | Pc | Shockproof Portable Carrying Case |
| 1 | Pc | Warranty Card |
| 1 | Pc | USB 2.0 Data Cable |
FAQ for SF6 Decomposition Product Analyzer
Q1: What gases can this SF6 decomposition tester detect?
A: It can test SO₂, H₂S, CO within the range of 0~100 μL/L. HF detection (0~10 μL/L) is available as an optional configuration before purchase.
Q2: What is the sensitivity of the instrument?
A: The sensitivity for all measurable gases is ±0.1 μL/L, ensuring precise trace gas detection inside high-voltage equipment.
Q3: How long is the response time for gas measurement?
A: The response time is only 45 seconds. It has fast testing speed and nearly no preheating waiting time for on-site use.
Q4: Can the device automatically judge equipment faults?
A: Yes. It features an intelligent fault diagnosis system. According to the concentration data of SO₂ and H₂S, it automatically analyzes internal hidden faults and gives targeted maintenance suggestions.
Q5: Will ambient temperature affect the measurement results?
A: No. The measuring results are free from ambient temperature interference. Its working temperature ranges from -20℃ to +50℃, adapting to harsh outdoor substation environments.
Q6: What power supply modes does it support?
A: It is AC/DC dual-purpose. Built-in rechargeable battery supports continuous work for more than 10 hours; it can also be connected to 220V mains power with overcharge protection.
Q7: What sampling accessories are equipped as standard?
A: Built-in pressure stabilizer, filter and flowmeter; standard accessories include a 3.6m sampling tube and one pressure reducing valve connector. The sampling flow is adjustable between 0.01~1L/min.
Q8: Does it need colorimetric tubes for testing?
A: No. The high-precision sensor conducts direct gas measurement, without consuming colorimetric tubes, which greatly reduces later use costs.
Q9: Can test data be exported?
A: Equipped with USB 2.0 interface, you can export stored test data to a computer for archiving and report printing.
Q10: How portable is the analyzer for field inspection?
A: Dimensions: 258×240×88mm, net weight only 2.4kg. It comes with a shockproof portable case, very easy to carry to different substations.
Q11: How long is the service life of the detection sensor?
A: It adopts long-life detection components, with stable performance, good repeatability and low maintenance frequency for long-term daily testing.
Q12: What is your after-sales service policy?
A: We provide 1-year global warranty for the whole machine and lifelong free technical consultation, calibration guidance for overseas customers.
