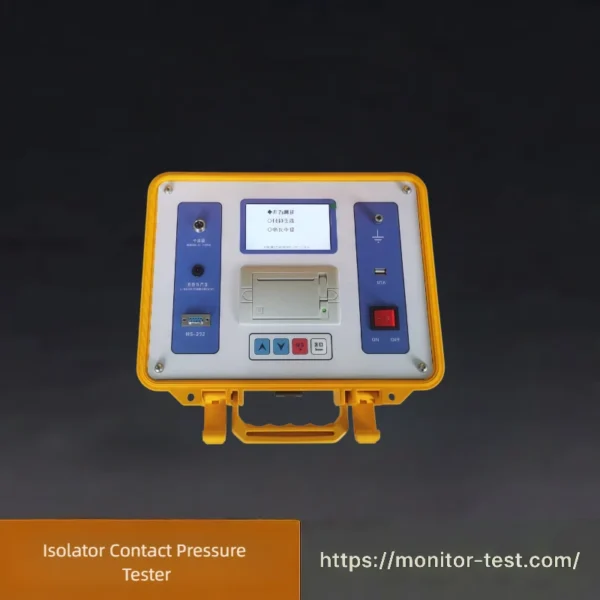

Product Features – Isolator Contact Pressure Tester

High-voltage disconnectors are the most widely used switchgear in power systems. Unlike other indoor electrical equipment, outdoor disconnectors operate in fully exposed atmospheric environments and are directly affected by rain, dust, temperature changes and corrosive gases. Under such harsh working conditions, contact fingers are extremely prone to poor contact, overheating and mechanical aging.

Insufficient contact pressure causes continuous overheating. The contact springs gradually lose elasticity due to thermal annealing, further reducing clamping force and creating a vicious cycle. If undetected, this condition will eventually burn the contact fingers and lead to serious power equipment failures and safety accidents.

Traditional maintenance methods mainly rely on loop resistance testing to judge contact performance. However, loop resistance only reflects the overall conductivity of the entire circuit, including terminals, conductive tubes and contact parts. It features large tolerance and cannot accurately reflect real contact finger pressure status. Even obviously uneven finger pressure will not cause obvious changes in loop resistance, leading to hidden risks that cannot be detected by conventional testing.

Industry maintenance standards clearly require contact finger pressure detection. Traditionally, technicians use spring scales for measurement, but this method is unsafe, inaccurate and difficult to operate at height. Moreover, many special disconnector structures such as scissor-type switches cannot be measured with spring scales at all, making standard pressure testing impossible in actual field work.

To solve these industry pain points, our intelligent Isolator Contact Pressure Tester is specially developed for on-site high-voltage switch maintenance. By inserting the simulated contact sensor between contact fingers, the instrument instantly measures, displays and stores the real clamping force data of each contact pair.

Effectively solving the long-standing industry problem of inaccurate and difficult contact pressure detection, this device is widely used for substation maintenance, power plant inspection and factory quality testing of disconnectors. With replaceable customized sensors, it can also accurately test contact finger pressure for various circuit breakers and special tulip contact switches.

Technical Parameters

Operating Conditions

Ambient temperature: -10 ℃ ~ 40 ℃
Relative humidity: ≤ 80% RH
Atmospheric pressure: 86 kPa ~ 106 kPa

Power Supply

Built-in lithium battery; Power consumption: ≤ 20 W

Measurement Specifications

Measuring range: ≤ 1000 N
Accuracy error: ≤ 1% of reading ±1 N

Measuring diameter (finger opening span):
Standard range: 20 mm ~ 150 mm;
Sizes below 20 mm or above 150 mm are available for customization.

Battery & Charging

Built-in rechargeable lithium battery; Continuous working time: ≥ 6 hours (customizable upon request)
Charging method: Charge via the dedicated charging port on the panel with the matched special charger.

Cable & Electrical Insulation Parameters

Sensor signal cable length: 10 m
Insulation resistance: ＞ 2 MΩ
Dielectric strength: Withstand AC power frequency voltage of 1.5 kV between power circuit and equipment enclosure for 1 minute, no flashover or arcing shall occur.

Packing List: Isolator Contact Pressure Tester

Item No.	Description	Qty	Unit
1	Main Tester Host	1	Set
2	Pressure Sensor with 10m Signal Cable	1	Set
3	Special Lithium Battery Charger	1	Pc
4	Operation Manual (English Version)	1	Copy
5	Calibration Certificate	1	Copy
6	Hard Shockproof Carrying Case	1	Pc
7	Accessory Bag	1	Set

FAQ: Isolator Contact Pressure Tester

Q1: What is an isolator contact pressure tester used for?

A: It measures the contact closing pressure of high-voltage disconnector/isolator contacts. Proper contact pressure prevents excessive heating, ablation and poor contact during power operation, widely used in substation maintenance, high voltage switchgear inspection and power equipment overhaul.

Q2: What is your measuring range and accuracy?

A: Standard measuring force range: up to 1000 N. Accuracy ≤1% reading ±1 N. The opening span for measuring fingers covers 20 mm to 150 mm as standard; sizes under 20 mm or over 150 mm can be customized.

Q3: What working environment is this tester applicable to?

A: Operating temperature: -10℃ ~ 40℃; Humidity ≤80% RH; Atmospheric pressure: 86 ~ 106 kPa. It adapts to most indoor and outdoor substation working conditions.

Q4: How long can the built-in lithium battery last? Is customization available?

A: Continuous working time ≥6 hours under normal use. We support customizing longer battery endurance according to your onsite demands.

Q5: How do I charge the device?

A: Equipped with a dedicated matched charger. Insert the charger plug into the battery charging port on the instrument panel for safe charging.

Q6: How long is the sensor signal wire?

A: Standard sensor cable length is 10 meters, convenient for measuring high-position isolating switch contacts without moving the main unit frequently.

Q7: Does the tester meet high voltage insulation safety requirements?

A: Yes. Insulation resistance is greater than 2 MΩ. It can withstand 1.5 kV power frequency AC voltage between power circuit and enclosure for 1 minute without flashover or electric arcing, fully safe for high-voltage field tests.

Q8: Can you customize specifications for special isolating switches?

A: Sure. We offer custom services for measuring span, battery life, cable length and partial functions to fit various domestic and overseas model disconnectors.

Q9: Is this device portable for field outdoor maintenance?

A: The whole machine is lightweight and handheld design with built-in rechargeable battery, no external power supply needed onsite, ideal for routine field power maintenance tasks.

Q10: What is your warranty policy?

A: We provide 1-year global warranty. Lifelong paid technical support and spare parts supply are available for all overseas clients.

Q11: Do you supply OEM & ODM service for wholesalers and distributors?

A: Yes. We support customized logo, packaging, operation language and parameter adjustment for bulk overseas orders.
