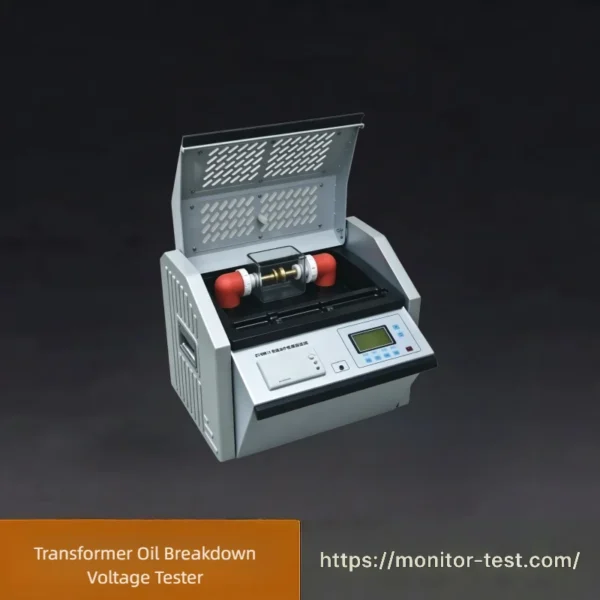

HF-TC-622 Transformer Oil Breakdown Voltage Tester
Our fully automatic Transformer Oil Breakdown Voltage Tester accurately detects dielectric strength of transformer insulating oil. It features automatic stirring, digital LCD display and built-in thermal printer, lightweight and portable for on-site substation routine oil quality inspection and data recording.
Send your requirements, we will quote for you within 12 hours
The HF-TC-622 insulating oil breakdown voltage tester operates in high-voltage, narrow-space environments with severe electromagnetic interference. Traditional instruments controlled by ordinary CPUs frequently freeze during testing.
This tester adopts professional electromagnetic compatibility design to thoroughly solve the system crash problem. Equipped with an electronic inverter sine wave generator for voltage regulation, it outputs precise voltage with perfect waveform. Unlike conventional voltage regulators, its test results will not be affected by grid voltage fluctuation and waveform distortion, ensuring outstanding accuracy and stability.
This tester adopts professional electromagnetic compatibility design to thoroughly solve the system crash problem. Equipped with an electronic inverter sine wave generator for voltage regulation, it outputs precise voltage with perfect waveform. Unlike conventional voltage regulators, its test results will not be affected by grid voltage fluctuation and waveform distortion, ensuring outstanding accuracy and stability.
Main Features
-
Freeze-Free Stable Operation
Optimized EMC design enables continuous normal operation under strong electromagnetic fields without any system halt during testing.
-
Superior Testing Precision
Advanced breakdown control technology reduces discharge energy at the moment of breakdown, avoiding contamination to oil samples and delivering more authentic, accurate and credible test data. -
Durable New-Generation Oil Cup
The oil cup is made of special new material, featuring high structural strength and extended service life. -
Complete Multi-Layer Safety Protection
Various protective circuits are integrated inside. It effectively protects operators and the device from hazards caused by deteriorated oil breakdown or empty chamber breakdown.
Technical Specifications
| Item | Parameter |
|---|---|
| Output Voltage | 0~80kV / 0~100kV |
| Resolution | 0.1kV |
| Accuracy | ±(2% reading + 0.2kV) |
| Voltage Rising Speed | Optional: 1.0kV/s, 2.0kV/s, 3.0kV/s |
| Breakdown Cut-off Time | ≤1ms |
| Test Times | Adjustable from 1 to 6 times |
| Oil Cup Capacity | 400ml / 200ml |
| Electrode Gap | 2.5mm (adjustable) |
| Operating Temperature | 0 ~ 40℃ |
| Relative Humidity | ≤80% RH, non-condensing |
| Power Supply | AC 220V±10%, 50Hz±1Hz |
| Overall Size | 310mm(L) × 420mm(W) × 360mm(H) |
| Net Weight | 22kg |
Applications
The Transformer Oil Breakdown Voltage Tester is used to test the dielectric breakdown voltage of insulating oil for oil-immersed power equipment.
It is widely applied in power substations, power plants and electrical testing laboratories to regularly inspect transformer oil, reactor oil and breaker insulating oil. The instrument detects moisture, impurities and aging deterioration inside oil samples, evaluates oil insulation performance, predicts potential insulation faults of high-voltage equipment, and effectively avoids sudden breakdown accidents so as to maintain the safe and stable operation of power grids.
Packing List: Transformer Oil Breakdown Voltage Tester
| No. | Item Name | Qty | Unit | Remarks |
|---|---|---|---|---|
| 1 | Main Unit of Oil Breakdown Voltage Tester | 1 | Set | JY6611 host machine |
| 2 | Standard Test Oil Cup + Electrodes | 1 | Set | 200ml & 400ml dual-purpose |
| 3 | Power Connection Cable | 1 | Pc | AC220V power cord |
| 4 | Grounding Wire | 1 | Pc | For safety earthing |
| 5 | Thermal Printing Paper | 2 | Rolls | For test report output |
| 6 | English User Operation Manual | 1 | Copy | Complete operation & maintenance guide |
| 7 | Factory Calibration Certificate | 1 | Copy | Official inspection certification |
| 8 | Spare Sealing Parts & Accessories | 1 | Set | Consumables for later replacement |
| 9 | Shockproof Portable Carrying Case | 1 | Piece | For transportation and storage |
FAQ – Transformer Oil Breakdown Voltage Tester
Optimized for Google SEO, targeted at substation operators, power maintenance teams and third-party electrical labs
Q1: What is the main function of this oil breakdown voltage tester?
A: It measures the dielectric breakdown voltage of transformer insulating oil. By testing oil insulation performance, it detects moisture, impurities and oil aging, so as to judge the internal insulation condition of transformers and other oil-filled high-voltage equipment and prevent insulation breakdown faults.
Q2: Why won’t this tester freeze during long-time testing?
A: It adopts professional electromagnetic compatibility (EMC) design. Even in narrow spaces with strong electromagnetic interference common in substations, the system runs stably without crashing, a prominent advantage over traditional CPU-controlled testers.
Q3: How does the instrument guarantee high test accuracy?
A: It uses an electronic inverter sine wave voltage regulator, free from disturbances of grid voltage fluctuation and waveform distortion. Besides, the low-energy breakdown control avoids oil sample contamination, making test results more accurate and repeatable.
Q4: What safety protections are built into the device?
A: Multiple safety protection circuits are equipped. It can automatically cut off high voltage when facing empty oil cup breakdown or deteriorated oil breakdown, fully protecting operators and the host machine against high-voltage hazards.
Q5: What voltage ranges can this model support?
A: Two optional output ranges: 0~80kV and 0~100kV, with a minimum resolution of 0.1kV to meet global standard oil withstand voltage test requirements.
Q6: Can I adjust the voltage rising speed?
A: Yes. Three rising speeds are selectable: 1.0kV/s, 2.0kV/s, 3.0kV/s, complying with IEC and international power testing standards.
Q7: How many repeated tests can be set for one oil sample?
A: The test cycle can be set from 1 to 6 times automatically; the device will calculate the average value after all tests to reduce manual errors.
Q8: What are the specifications of the oil cup?
A: Dual capacity oil cup: 200ml / 400ml. The electrode gap is 2.5mm and adjustable. The oil cup is made of high-strength special material with long service life.
Q9: What is the overall weight and size, is it convenient for field carrying?
A: Net weight is 22kg, overall dimensions: 310×420×360mm. Compact structure, suitable for both laboratory fixed testing and on-site substation mobile inspection.
Q10: What working environment can the instrument adapt to?
A: Operating temperature: 0~40℃; humidity ≤80%RH (no condensation). It fits conventional indoor laboratory environments as well as substation field working conditions.
Q11: Does the tester come with a printing function for test data?
A: Yes. Built-in thermal printer outputs paper test reports directly, convenient for filing, archiving and project record submission.
Q12: What power supply does it use?
A: Standard AC 220V±10%, 50Hz power supply, widely compatible with power grids in most countries.
