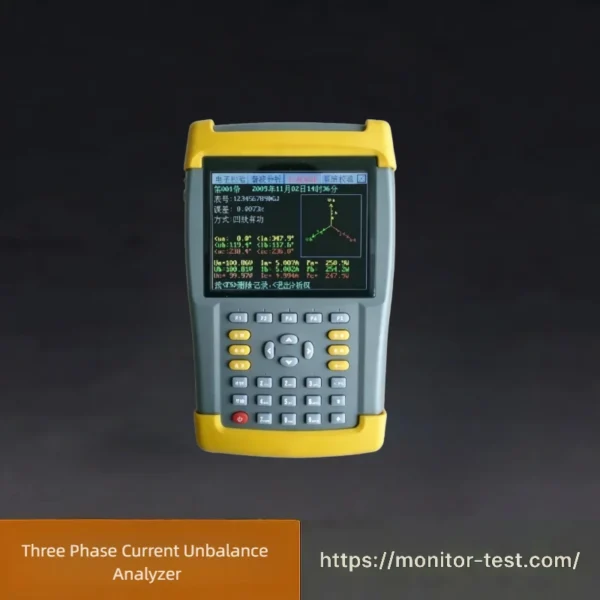

HF-PQ-T201 Three Phase Current Unbalance Analyzer
This three-phase current unbalance analyzer measures three-phase currents, calculates unbalance degree and stores test data. It is widely used for load inspection, fault troubleshooting and power quality analysis in distribution systems.
Send your requirements, we will quote for you within 12 hours
Energy conservation and consumption reduction are key development directions for power systems. During the operation of distribution transformers, three-phase current unbalance commonly occurs. It will increase losses of lines and transformers, and even endanger safe transformer operation. Three-phase current unbalance may also lead to three-phase voltage unbalance, degrade power quality, and affect energy meter accuracy, resulting in metering losses.
The three-phase current unbalance recorder records and analyzes three-phase currents and unbalance degree. Compact and user-friendly, it provides an effective tool for users to reasonably distribute loads.
Product Features
- Supports 24/7 continuous tracking monitoring and recording of three-phase currents.
- Monitors and records neutral zero-sequence current.
- Measures and records three-phase current unbalance degree.
- Built-in real-time clock; data will not be lost after power failure.
- Data can be saved directly to USB flash drive; historical data can be stored continuously for up to 3 years.
- Equipped with background management software, compatible with Win9x/2000/XP/NT systems. It supports analysis and report printing of three-phase current, zero-sequence current and unbalance degree for convenient data management.
Technical Parameters
| Parameter | Specification |
|---|---|
| Current Input | Clamp sensor 0~200A (standard); 500A / 1000A optional upon request |
| Recording Interval | 1~99 minutes |
| Operating Voltage | 85~265V (custom special voltage available) |
| Operating Frequency | 45~60Hz |
| Overall Accuracy | Class 1.0 |
| Weight | 2kg |
Packing List
| Item No. | Description | Qty | Unit | Remarks |
|---|---|---|---|---|
| 1 | Analyzer Main Unit | 1 | Set | Handheld recording host |
| 2 | 0~200A Clamp Current Sensor | 3 | Pcs | Standard configuration |
| 3 | USB Data Cable | 1 | Pcs | For data export |
| 4 | Power Supply Adapter | 1 | Pcs | AC85~265V |
| 5 | Operation Manual | 1 | Copy | Chinese & English version |
| 6 | Calibration Certificate | 1 | Copy |
FAQ for Three Phase Current Unbalance Analyzer
Q1: What main functions can this instrument realize?
A1: It supports 24-hour continuous monitoring of three-phase current, zero-sequence current and three-phase current unbalance degree, and automatically records all test data.
Q2: What is the standard measuring range of the clamp sensor?
A2: Standard clamp sensor: 0~200A. 500A and 1000A sensors are optional according to customer requirements.
Q3: Can the recorded data be saved for a long time?
A3: Yes. Data can be stored on USB flash drive, and historical data can be continuously recorded for up to 3 years. Built-in clock prevents data loss after power failure.
Q4: How to export and analyze the test data?
A4: Export data via USB flash drive. Matching background software supports data analysis, viewing and report printing on Windows systems.
Q5: What is the operating voltage range of the analyzer?
A5: Working voltage: 85~265V. Special voltage specifications can be customized.
Q6: What is the recording interval adjustment range?
A6: The recording interval can be set freely from 1 minute to 99 minutes.
Q7: What is the accuracy grade of the whole device?
A7: The overall measurement accuracy is Class 1.0.
