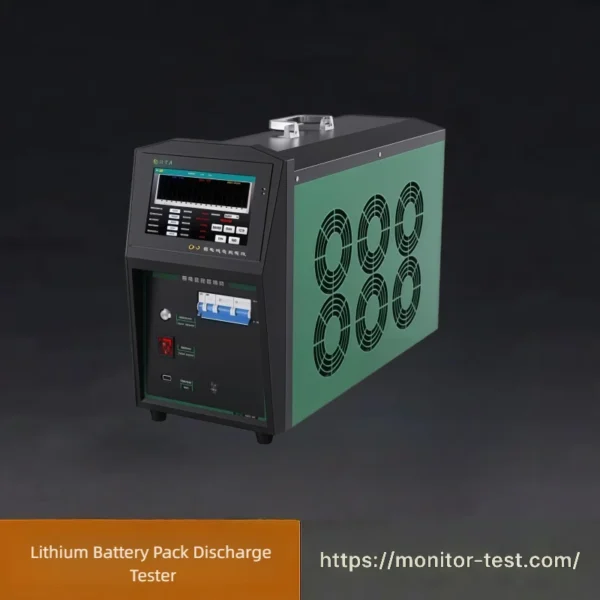

HF-BT-414 Lithium Battery Pack Discharge Tester
The Lithium Battery Pack Discharge Tester performs discharge capacity testing and aging evaluation for lithium battery packs. It monitors voltage, current and temperature in real time, records complete test data, and realizes safe discharge to verify actual battery performance.
Send your requirements, we will quote for you within 12 hours
The HF-BT-414 Lithium Battery Pack Discharge Device is developed for the new energy aftermarket. It enables rapid discharge during battery disassembly, storage, transportation, return maintenance and recycling for battery manufacturers and vehicle OEMs. It effectively reduces risks in battery logistics. Widely applied in energy storage, battery recycling & disassembly, cascade utilization and new energy aftermarket battery maintenance.
Features
• Wide voltage design: Compatible with battery packs of various voltage ranges to realize multi-purpose application.
• Multi-mode discharge: Supports constant current and constant power discharge, simulating various loaded operating conditions of battery packs.
• Intelligent operation: Simple operation with one-key discharge. High efficiency and intelligence ensure safe discharging process.
• Portable design: Compact and lightweight, suitable for diverse scenarios to meet requirements of different customers.
• Multi-mode discharge: Supports constant current and constant power discharge, simulating various loaded operating conditions of battery packs.
• Intelligent operation: Simple operation with one-key discharge. High efficiency and intelligence ensure safe discharging process.
• Portable design: Compact and lightweight, suitable for diverse scenarios to meet requirements of different customers.
Technical Specifications
| Item | HF-BT-414A | HF-BT-414B |
|---|---|---|
| Model | HF-BT-414A | HF-BT-414B |
| Discharge Voltage Range | DC 10~600V | DC 10~800V |
| Max Output Power | Max 15KW / Max 30KW | Max 24KW / Max 50KW / Max 75KW |
| Discharge Current Range | 300V: Max 50A 600V: Max 25A 300V: Max 100A 600V: Max 50A |
300V: Max 50A / Max 100A / Max 150A 600V: Max 40A / Max 80A / Max 120A 800V: Max 20A / Max 40A / Max 80A |
| Power Supply | 220V/AC±15% 50Hz | 220V/AC±15% 50Hz |
| Display | 7-inch LCD Touch Screen, 1024*600 | 7-inch LCD Touch Screen, 1024*600 |
| Voltage Sampling Accuracy | ±0.5%FS @600V; Resolution: 0.1V | ±0.5%FS @800V; Resolution: 0.1V |
| Current Accuracy | ±1%FS @100A; Resolution: 0.1A | ±1%FS @100A; Resolution: 0.1A |
| Operation Modes | Constant Current, Constant Power Discharge | Constant Current, Constant Power Discharge |
| Operating Environment | Temperature: -10~65℃ Humidity: 0~90% Altitude: ＜4000m |
Temperature: -10~65℃ Humidity: 0~90% Altitude: ＜4000m |
| Emergency Stop Protection | External air circuit breaker for emergency shutdown protection | External air circuit breaker for emergency shutdown protection |
| Cooling Method | Air Cooling | Air Cooling |
| Protection Functions | Input under-voltage, battery reverse polarity, output over-current, output over-voltage, equipment over-temperature protection | Input under-voltage, battery reverse polarity, output over-current, output over-voltage, equipment over-temperature protection |
| Dimensions (mm) | 628230400 630390966 |
628230400 7006151950 7006151950 |
| Weight (kg) | 23 / 63 | 20 / 120 / 150 |
FAQ｜Lithium Battery Pack Discharge Tester
Q1: What application scenarios is this discharge tester suitable for?
A1: It is used for fast discharge of battery packs during storage, transportation, maintenance, recycling and disassembly. Widely adopted in energy storage, battery cascade utilization and new energy aftermarket.
Q2: What voltage ranges do CP-F600 and CP-F800 support?
A2: HF-BT-414A: DC 10~600V; HF-BT-414B: DC 10~800V. Wide voltage design adapts to multiple battery packs.
Q3: What discharge modes are available?
A3: Constant current discharge and constant power discharge. It can simulate various loaded working conditions of battery packs.
Q4: How to operate the machine? Is it complicated?
A4: Equipped with a 7-inch LCD touch screen. It supports one-key discharge, simple and intelligent operation to ensure discharging safety.
Q5: What safety protection functions does it have?
A5: Built-in multi-protection: input undervoltage, reverse polarity, output overcurrent, overvoltage and overtemperature protection. External circuit breaker supports emergency stop.
Q6: What is the cooling method?
A6: Air cooling. It can work stably within -10℃ ~ 65℃ with altitude below 4000m.
Q7: Is the tester portable for field use?
A7: Compact portable structure. Multiple specifications with different weights for lab and on-site working scenarios.
