Overview

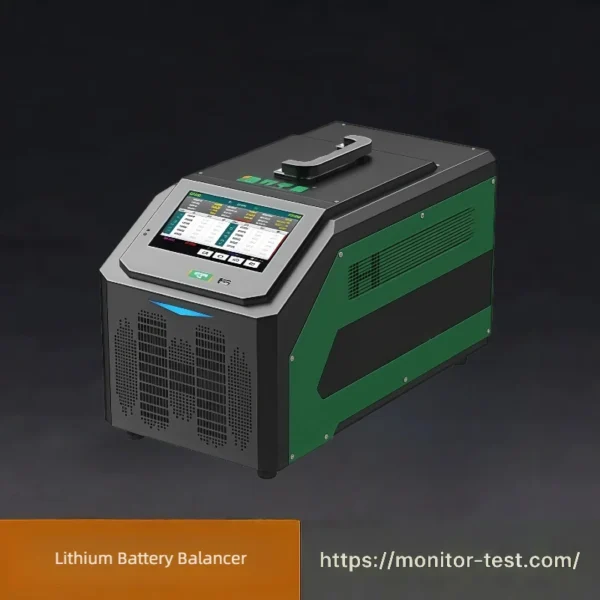

The HF-BT-415 lithium battery module balancing maintenance device is designed to solve problems including capacity attenuation and shortened cycle life resulting from inconsistent cell voltage in lithium battery packs. It adjusts voltage difference between cells through charging, discharging and balancing modes, restores the overall performance of battery packs, and ensures safety and service life.

Features

Optional maintenance modes: Charge supplement, discharge and balance modes are selectable to adapt to various working conditions.
Intelligent CC-CV automatic switching: Automatically switch between charge and discharge modes with terminal depolarization treatment to reduce voltage rebound.
High-precision balancing: Voltage control accuracy ±1mV, current accuracy ±10mA. It prevents overcharge and overdischarge and realizes superior voltage consistency after balancing.
Independent channels: One independent unit supports 12 cells (12S), expandable up to 104S. Each channel is separately controlled without mutual interference.
Multiple safety protections: Reverse connection, overvoltage, overcurrent, overtemperature and short-circuit protection to eliminate hidden safety risks.
Data management: 7-inch touch screen displays real-time data. Test records can be saved and exported for after-sales analysis and traceability.

Advantages Compared With Common Products On The Market

Comparison Item	Balancing Maintenance Device	Common Products On The Market
Precision Control	Voltage ±1mV, Current ±10mA	Normally ±5mV with obvious current error
Channel Independence	Modular design, independent control for each channel	Channel crosstalk causes unstable effect
Operation Convenience	6 preset battery templates, one-click startup	Parameters need manual setting with complex procedures
Multi-channel Expansion	Flexible configuration of 1~6 channels	Fixed channel quantity
Data Management	Graphical display, data export supported	Only basic data display
Applicable Battery Types	LFP / NCM / LTO lithium batteries	Only compatible with single battery type

Unique Advantages

✅ Stable Repair
Control precision conforms to industry standards to guarantee long-term stable balancing effect.

✅ Flexible & Efficient
Modular design with expandable function, suitable for battery packs from 12S to 104S.

✅ Intelligent & Labor-saving
Preset templates and automatic modes lower operation difficulty and improve maintenance efficiency.

Application Scenarios & Necessity Analysis

Battery Manufacturer After-sales

Demand: Rapidly repair voltage inconsistency of factory battery packs and reduce return rate.
Product matching: High-precision balancing and data recording accurately locate faulty cells and provide evidence for after-sales reports.
Necessity: Avoid scrapping whole battery packs caused by individual cell differences and reduce manufacturer losses.

Vehicle OEM & 4S Workshop Maintenance

Demand: Quickly solve the problem of declining EV driving range and improve customer satisfaction.
Product matching: One-click operation; parameter configuration completed within 10 minutes; multiple battery templates available for call-up.
Necessity: Cut vehicle battery replacement costs, extend battery life within warranty period and safeguard brand reputation.

Energy Storage Station Maintenance

Demand: Regular balancing for large-scale battery packs to prevent thermal runaway risks.
Product matching: Flexible configuration of 1~6 channels; multiple cell strings can be maintained in one operation; parallel connection supported to boost maintenance efficiency.
Necessity: Ensure stable operation of energy storage systems and avoid safety accidents triggered by accumulated voltage difference.

Battery Warehouse Management

Demand: Activate and maintain batteries with deteriorated voltage consistency after long-term storage.
Product matching: Automatically repair voltage deviation under balancing mode; support operation under low temperature (-20℃~50℃).
Necessity: Improve the availability of stocked batteries and reduce resource waste.

FAQ | Lithium Battery Balancer

Q1: What problems can this lithium battery balancer solve?

A1: It fixes voltage inconsistency among series cells, improves capacity attenuation and short cycle life, and restores overall performance of lithium battery packs.

Q2: What working modes does the HF-BT-415 support?

A2: Three optional modes: supplementary charging, discharging and balancing. It supports intelligent CC-CV switching with depolarization treatment to reduce voltage rebound.

Q3: What is the balancing accuracy?

A3: Voltage control accuracy ±1mV, current accuracy ±10mA. Effectively avoid overcharge and overdischarge and achieve excellent cell consistency.

Q4: What battery series range is applicable?

A4: One unit supports 12S cells. The system can be expanded up to 104S, with 1~6 channels configurable freely.

Q5: What battery types can it work with?

A5: Compatible with lithium iron phosphate, ternary lithium and lithium titanate batteries.

Q6: Does the machine have safety protection functions?

A6: Yes. It provides reverse connection, overvoltage, overcurrent, overtemperature and short-circuit protection.

Q7: Can test data be saved and exported?

A7: Equipped with a 7-inch touch screen. Test records can be stored and exported for after-sales analysis and traceability.

Q8: What typical application scenarios are there?

A8: Battery factory after-sales, vehicle OEM & 4S maintenance, energy storage station maintenance and battery warehouse management.
