Product Introduction

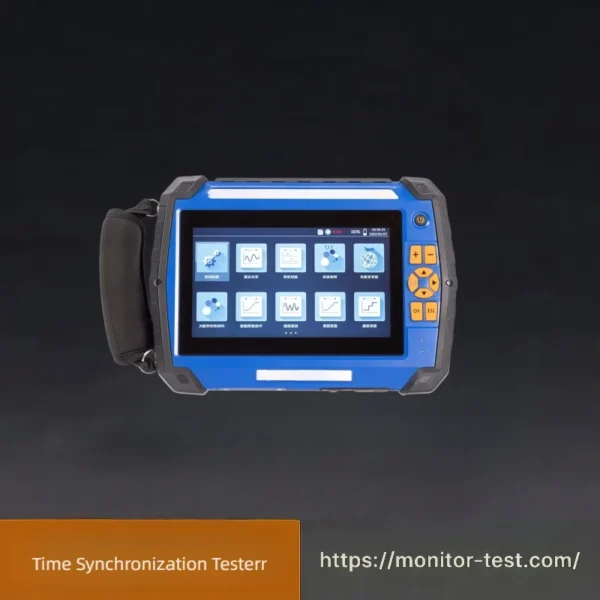

The HF-RT-206 Time Synchronization Tester is developed in accordance with national standards including DL/T 1100.1-2016, DL/T 1100.2-2013 and the Guangdong Provincial Grid GPS Time Synchronization System Specification. Built on a low-power dual-core SOC platform with ARM+FPGA architecture, this modular handheld device supports dual access modes of GPS and Beidou. Featuring powerful functions, high precision, compact size and light weight, it accurately measures pulse signals, IRIG-B AC/DC time codes, serial time messages, SNTP/IEEE 1588 network time synchronization messages, and automatically identifies signal types. It calculates key metrics such as time accuracy, standard deviation, peak value and pulse width, widely applied to power supply bureaus, power transmission enterprises, maintenance corporations, electric power research institutes and industrial institutions for time calibration, measurement and testing tasks.

Features & Main Functions

Intelligent Signal Identification

Automatically recognizes the type of accessed time synchronization signals and outputs corresponding test results.

Dual GPS/Beidou Timing Mode

Supports dual-system timing via GPS and Beidou satellite navigation systems.

Continuous Monitoring

Enables continuous recording and analysis of various time signals; users can manually set monitoring duration.

Comprehensive Time Signal Measurement

Measures time accuracy, standard deviation, rising edge time, amplitude and pulse width of all time synchronization signals.

High-Precision Time Reference Source

Equipped with high-stability oscillator for ultra-precise local timekeeping and standard time reference signal output.

Digital Message Parsing

Decodes SV, GOOSE, FT3 and extended messages received from power system communication networks.

Abnormal Signal Generation

Outputs abnormal time synchronization signals to test the response performance and stability of on-site equipment under fault conditions.

Network Timing Measurement

Verifies synchronization precision of PTP, NTP and SNTP messages over 10/1000M Ethernet networks.

Test Report Generation & Export

Comes with USB interface to export screenshots, raw test data and final test reports in batches.

High-Speed Sampling

Built-in high-speed AD converter delivers a maximum time measurement resolution of 4 nanoseconds.

Intelligent Marking

Highlights unqualified measurement indicators for intuitive and clear result viewing.

Multi-Channel Comparative Measurement

Accesses multiple time synchronization signals simultaneously to compare and analyze measurement data.

Diversified Output Interfaces

Modular structural design allows users to replace functional modules according to actual application demands.

SOE Testing Function

Performs SOE (Sequence of Events) recording and delay measurement for merging units and intelligent terminals.

Oscilloscope Function

Real-time waveform display for all measured time synchronization signals.

Ultra-Long Battery Life

Large-capacity lithium battery built-in, continuous working time ≥ 6 hours.

Large Touch Display Screen

7-inch true-color capacitive touch screen with clear interface and easy operation.

Packing List: Time Synchronization Tester

Item No.	Description	Qty	Unit	Remarks
1	Time Synchronization Tester Main Unit	1	Set	7-inch touch screen, built-in lithium battery
2	GPS & Beidou Timing Antenna	1	Pcs	Magnetic suction base, extension cable included
3	IRIG-B Test Connection Cables	2	Pcs	AC/DC IRIG-B signal test leads
4	Pulse Signal Test Clamp Leads	1 Set	Set	Positive & negative alligator clip wires
5	Ethernet Network Test Cable	1	Pcs	For PTP/NTP/SNTP network timing test
6	DC Power Charging Adapter	1	Pcs	AC 100~240V wide voltage input
7	USB Flash Drive	1	Pcs	Preloaded operation software, user manual
8	Printed English Operation Manual	1	Copy	Detailed operation & parameter guide
9	Factory Calibration Certificate	1	Copy	Official metrological calibration document
10	Portable Shockproof Carrying Case	1	Pcs	Hard shell, dustproof & anti-collision for transportation
11	Spare Fuse	2	Pcs	For power input protection backup

FAQ | Time Synchronization Tester

Q1: What is a Time Synchronization Tester mainly used for?

A1: It is a professional portable testing device specially designed for power grid timing systems. It calibrates, measures and verifies the time synchronization accuracy of substation automation equipment, protection relays, merging units and secondary power devices, ensuring unified standard time across the whole power system.

Q2: Which industry standards does this tester comply with?

A2: It fully complies with DL/T 1100.1-2016, DL/T 1100.2-2013, IEEE 1588 international timing specifications and provincial grid time synchronization technical requirements, all test data is accepted for power station inspection and acceptance.

Q3: What timing signal types can the instrument identify and test?

A3: It automatically identifies & tests IRIG-B AC/DC code, pulse signals, serial time messages, SNTP, NTP, PTP(IEEE 1588), SV, GOOSE, FT3 messages and other mainstream power timing signals.

Q4: What timing reference sources does the tester adopt?

A4: It supports GPS + Beidou dual-mode satellite timing. Built-in high-stability oscillator provides high-precision local clock benchmark when satellite signal is unavailable.

Q5: What is the highest time measurement resolution?

A5: Equipped with high-speed AD sampling module, the time measurement resolution reaches up to 4ns, which can capture tiny time deviation accurately.

Q6: Can it conduct continuous long-term monitoring of timing signals?

A6: Yes. You can manually set arbitrary monitoring duration, record whole-process data, calculate accuracy, standard deviation, peak value and pulse width of timing signals automatically.

Q7: Does it support network timing accuracy testing?

A7: Definitely. It measures synchronization precision of PTP, NTP and SNTP messages under 10/1000M Ethernet network environment for network-based time synchronization systems.

Q8: What is SOE measurement function for?

A8: The SOE delay test function checks the event sequence recording accuracy and transmission delay of merging units, smart terminals and protection devices, which is essential for substation commissioning.

Q9: Can it output abnormal timing signals for equipment anti-interference testing?

A9: Yes. It can simulate faulty abnormal time signals to examine the response capacity, stability and fault tolerance of on-site secondary control devices under abnormal timing conditions.

Q10: Can multiple timing signals be tested and compared simultaneously?

A10: Supported. Multi-channel input design allows accessing several timing signals at the same time, convenient for transverse comparison and difference analysis of different clock sources.
