Product Introduction

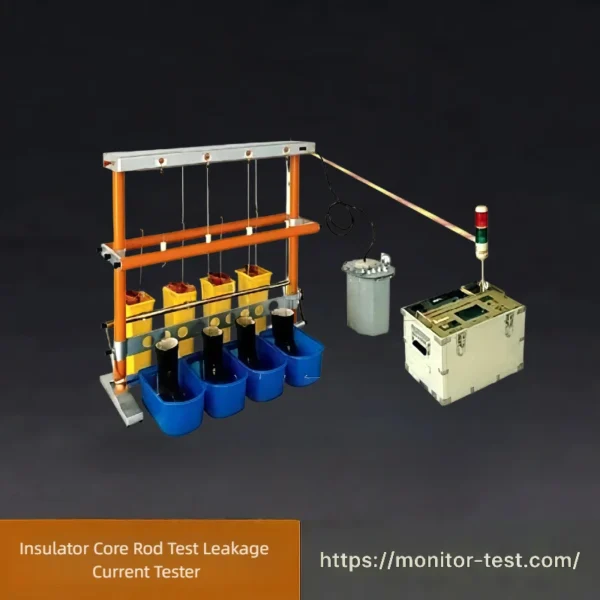

The HF-LT-306 Insulator Core Rod Leakage Current Test Device is a high-performance intelligent test instrument developed in accordance with national power industry standards. It is specially designed for AC withstand voltage tests on insulator core rod samples and capable of measuring AC withstand voltage and AC leakage current of core rod specimens. The system consists of an intelligent control cabinet and high-voltage electrode assembly.

Alternative Names

Intelligent Insulator Core Rod Leakage Current Test Device,
Insulator Core Rod Leakage Current Test Set,
Insulator Leakage Current Tester,
Automatic Insulator Core Rod Leakage Current Test Instrument

Product Features

Equipped with 320×240 LCD display and high-speed thermal printer.
Four measurement channels: high voltage, high-voltage leakage current, low voltage and low-current. Adopts high-precision sensors and high-performance 14-bit AD acquisition chip.
Full keyboard human-machine interaction. Fully intelligent test workflow, supporting automatic and manual operation modes.
Real-time display of high voltage, high-voltage leakage current, low voltage, low current, test duration and withstand voltage results with clear visualization.
Comprehensive overvoltage and overcurrent protection. Users can preset output voltage limit, upper threshold of high voltage current, upper threshold of low voltage current and timing duration.
Zero-return detection function. Tests can only start after zero calibration for enhanced safety and reliability.
Supports insulation resistance measurement to directly reflect the insulation strength of test samples.
Adopts proximity voltage regulation algorithm. Automatically starts withstand voltage timing after reaching set voltage and reduces voltage to zero upon test completion.
Automatically cuts off voltage output, drops voltage to zero and triggers audible & visual alarm once high or low current exceeds preset limits.
Optimized hardware and software anti-interference design with multiple shielding methods, suitable for harsh electromagnetic environments.

FAQ for Insulator Core Rod Test Leakage Current Tester

Q1: What is this tester used for?

A1: It performs AC withstand voltage, leakage current and insulation resistance tests on FRP core rod samples of composite insulators to detect hidden insulation defects.

Q2: Which industry standards does it comply with?

A2: Designed in accordance with relevant national power industry standards for insulator core rod testing.

Q3: Does it support automatic and manual operation?

A3: Yes. Users can select automatic mode with auto timing & voltage zeroing or manual operation mode freely.

Q4: What measurement channels are available?

A4: Four measurement channels: high voltage, high-voltage leakage current, low voltage and low current, equipped with high-precision 14-bit AD acquisition chip.

Q5: What safety protection functions does it have?

A5: Overvoltage protection, overcurrent protection, zero-return detection, plus audible and visual alarms when exceeding current limits.

Q6: Can the instrument record and print test results?

A6: It adopts a 320×240 LCD display and built-in high-speed thermal printer to output complete test data.

Q7: Will the voltage drop automatically after the test finishes?

A7: Yes. After withstand voltage timing is completed, the tester will automatically step down and return voltage to zero.

Q8: Can it work under complicated electromagnetic conditions?

A8: It adopts optimized hardware and software anti-interference design, suitable for harsh electromagnetic environments.

Q9: What samples can be tested?

A9: Specially for composite insulator core rod samples in laboratory inspection and quality verification.

Q10: Can users set test parameters independently?

A10: Operators can preset output voltage, high/low current threshold and test timing duration as required.
