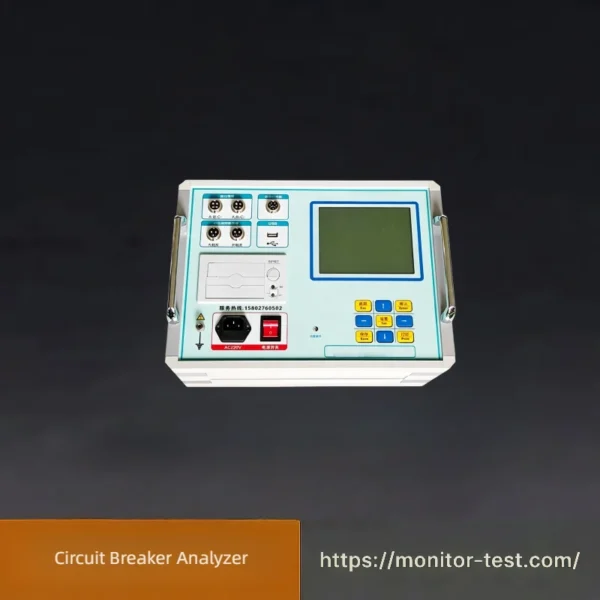

HF-WC-606 Circuit Breaker Analyzer
Our high-precision Circuit Breaker Analyzer measures all mechanical and electrical indicators of high voltage switchgears, including opening/closing time, contact bounce and loop resistance. Portable and intelligent, it supports automatic report generation. We supply reliable equipment and comprehensive technical services to global power industries.
Send your requirements, we will quote for you within 12 hours
Overview
A Circuit Breaker Analyzer is a professional instrument designed to detect and analyze the mechanical characteristics and electrical performance of circuit breakers. By measuring key parameters, it evaluates the operational reliability, response speed and electrical condition of circuit breakers to guarantee their safe operation within power systems. Detailed specifications are listed below:
Core Functions
1. Mechanical Characteristic Tests
- Opening & Closing Time: Time elapsed from command issuance to full contact movement, with millisecond-level precision.
- Phase Synchronization: Time difference in actuation among three-phase contacts; synchronization inspection is mandatory for multi-break circuit breakers.
- Travel & Velocity: Contact movement trajectory, instantaneous and average speed during opening/closing operations.
- Contact Bounce Time: Vibration duration upon contact closure, which directly impacts arc extinguishing service life.
2. Electrical Characteristic Tests
- Coil Current Waveform: Records current curves of opening/closing coils to diagnose coil aging, mechanical jamming and other faults.
- Contact Resistance: Main circuit resistance measurement with micro-ohm accuracy to identify contact ablation.
- Minimum Operating Voltage: The lowest operational voltage that ensures reliable circuit breaker actuation.
3. Dynamic Analysis
- Travel-Time Curve: Visualizes the whole contact movement process to locate buffer failure or mechanical sticking issues.
- Energy Storage Motor Performance: Measures motor current, torque and energy storage time for spring/hydraulic operating mechanisms.
Key Test Items
| Test Category | Measured Parameters | Practical Significance |
|---|---|---|
| Time Parameters | Opening time, closing time | Verify whether actuation response complies with industrial standards |
| Synchronization | Inter-phase & inter-break asynchronous difference | Prevent overvoltage caused by three-phase imbalance |
| Operating Speed | Instantaneous breaking/closing speed | Determine arc quenching capacity and mechanical service life |
| Bounce Analysis | Contact bounce times & duration | Shorten arcing time and avoid contact welding |
| Coil Performance | Current waveform, pickup voltage | Detect electromagnet jamming or coil short-circuit faults |
| Loop Resistance | Main contact resistance | Pinpoint overheating risks resulting from poor contact |
Typical Application Scenarios
- Factory Acceptance Test: Verify newly manufactured circuit breakers conform to design specifications (per IEC 62271 standards).
- Preventive Maintenance: Periodic annual inspection to predict mechanical wear and electrical aging.
- Fault Diagnosis: Locate root causes of failures such as refusal to operate, misoperation and slow opening/closing.
- Commissioning Test: Mandatory acceptance check before on-site installation and energization.
Instrument Advantages
- High-Voltage Isolation: Direct connection to kV-level circuits with fiber-optic or wireless synchronous triggering.
- Multi-Channel Sampling: Simultaneous acquisition of 6~12 signals including coil current, displacement and auxiliary contact signals.
- Intelligent Data Analysis: Auto-generate test reports and compare historical data for trend analysis.
- Portable Structure: Ideal for field tests in substations and switchgear rooms.
Safety Precautions
Before testing, shift the circuit breaker to the test position, cut off the main power circuit and complete full discharge operations. All high-voltage tests must strictly abide by power safety regulations: wear insulated gloves and set up warning barriers on-site.
Packing List: Circuit Breaker Analyzer
| No. | Item Name | Specification & Description | Qty | Unit | Remarks |
|---|---|---|---|---|---|
| 1 | Main Unit | Circuit Breaker Analyzer Host | 1 | Set | Core testing device |
| 2 | Displacement Sensors | Travel measuring transducers | 2 | Pcs | For stroke & speed detection |
| 3 | Current Clamps | Coil current test clamps | 3 | Pcs | Measure opening/closing coil waveform |
| 4 | High Voltage Test Cables | Insulated signal connecting wires | 1 | Set | Full wiring harness |
| 5 | Trigger Lines & Auxiliary Wires | Synchronous trigger cables | 1 | Set | Three-phase synchronous acquisition |
| 6 | Power Cord | AC power supply cable | 1 | Pc | International universal plug |
| 7 | USB Data Cable | For data export & PC connection | 1 | Pc | |
| 8 | User Operation Manual | English Version | 1 | Book | Detailed operation & parameter guide |
| 9 | Calibration Certificate | Official factory calibration report | 1 | Copy | For onsite acceptance & inspection |
| 10 | Portable Hard Carrying Case | Shockproof waterproof aluminum case | 1 | Pc | Integral storage & field transport |
| 11 | Spare Fuses & Small Accessories | Consumable spare parts kit | 1 | Set | Daily replacement parts |
FAQ: Circuit Breaker Analyzer
1. What is a Circuit Breaker Analyzer used for?
It tests mechanical and electrical performance parameters of high-voltage circuit breakers and switchgears, checking opening/closing time, contact bounce, travel speed, coil current and loop resistance to ensure safe operation in power systems.
2. Which types of circuit breakers can this instrument test?
It applies to vacuum breakers, SF6 circuit breakers, oil circuit breakers and all indoor/outdoor HV switchgears widely used in substations and power plants.
3. What core parameters can the device measure?
Main test items include opening & closing time, three-phase synchronization, contact bounce, stroke, operating speed, coil current waveform, minimum action voltage and main loop resistance.
4. Is the tester portable for on-site field work?
Yes. Equipped with a shockproof aluminum carrying case, compact structure and lightweight design, it is perfectly suitable for outdoor substation preventive tests and commissioning work.
5. Does it support automatic test report generation?
Absolutely. After testing, the device automatically stores data, generates standardized test reports, and supports data export via USB to computers for trend comparison and file archiving.
6. How many signal channels does the standard version adopt?
The standard configuration comes with 6–12 acquisition channels, realizing synchronous collection of displacement, coil current and auxiliary contact signals simultaneously.
7. Is high-voltage isolation available during testing?
Built-in high voltage isolation design, with fiber-optic and wireless triggering options, effectively avoids interference and guarantees personal safety during live adjacent tests.
8. Can you provide customized functions and configurations?
We support personalized channel quantity, language system and functional customization according to customers’ project requirements.
9. Do you offer factory calibration certificates?
Each unit is delivered with an official factory calibration certificate, which meets IEC standards and passes on-site acceptance inspection smoothly.
10. What after-sales services can we get after purchase?
We provide free operation guidance, remote technical support, one-year warranty and lifelong paid maintenance for global clients.
11. Is the operation complicated for new operators?
The human-machine interface is simple and intuitive. With the English user manual and our technical training, technicians can master operation quickly.
