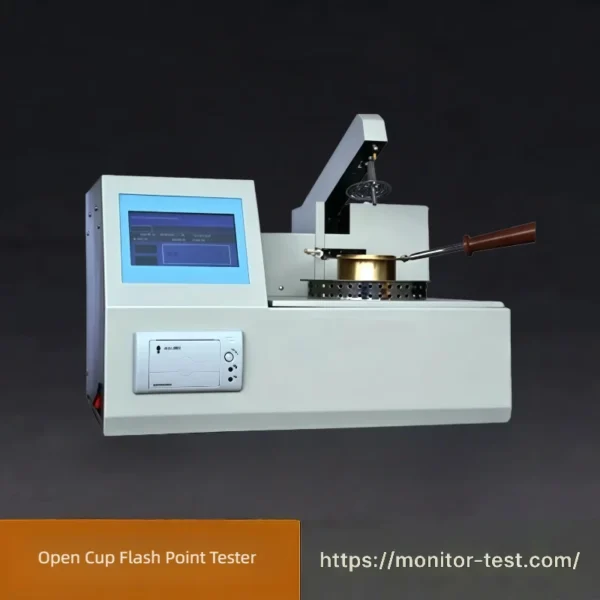

HF-TC-635 Open Cup Flash Point Tester
The Open Cup Flash Point Tester adopts the open cup testing method to determine the flash point of petroleum and liquid fuels. It is widely used in oil laboratories for fuel safety assessment, product inspection and quality analysis.
Send your requirements, we will quote for you within 12 hours
HF-TC-635 Automatic Open Cup Flash Point Tester is designed and manufactured in accordance with GB267-88 and GB3536-83 open cup flash point test standards.
Equipped with large-screen LCD display, it adopts computer to control the whole test process. It features automatic temperature rise control, automatic ignition sweeping, automatic flash point capturing, automatic result printing and automatic gas source shutoff.
Equipped with large-screen LCD display, it adopts computer to control the whole test process. It features automatic temperature rise control, automatic ignition sweeping, automatic flash point capturing, automatic result printing and automatic gas source shutoff.
With reliable measurement, excellent repeatability, stable performance and simple operation, it is widely applied in power industry, petroleum sector, commodity inspection, scientific research and other fields.
Technical Parameters
| Item | Specification |
|---|---|
| Display | Large-screen full Chinese LCD module |
| Measuring range | 40℃ ~ 400℃ |
| Repeatability | Flash point ≤150℃: Error ±1℃ Flash point ≥150℃: Error ±3℃ |
| Power supply | AC 220V, 50Hz; Power: 100VA |
| Operating environment | Temperature: 10℃ ~ 35℃; Humidity: ≤85% |
| Gas & Ignition | Gas source: Liquefied gas; Ignition mode: Automatic ignition |
Operation Procedure — Open Cup Flash Point Tester
1. Pre-test Preparation
- Place the instrument on a stable workbench without obvious airflow.
- Clean the test cup thoroughly with solvent and dry completely; no residual oil or impurities left.
- Connect AC 220V power supply. Link liquefied gas source and check for gas leakage.
- Pour sample into the test cup up to the marked level, avoid bubbles and overflow.
- Put the test cup into the heating chamber steadily.
2. Parameter Setting
- Switch on the instrument, the large LCD screen lights up.
- Select test standard GB267-88 / GB3536-83.
- Input expected flash point, sample number and operator information.
- Confirm printer status if printed report is required.
3. Start Automatic Test
- Press Start button; the test arm descends automatically.
- The instrument starts heating according to standard temperature rise curve.
- When approaching the expected flash point, the igniter automatically ignites and performs flame scanning.
- Once flash vapor ignition is detected, the tester automatically locks the flash point value, stops heating, extinguishes flame and cuts off gas source.
- The result can be displayed on screen and printed automatically.
4. Post-test Operations
- Wait until the heating chamber cools down. Take out the test cup carefully.
- Clean test cup, temperature sensor and ignition assembly.
- Close gas cylinder valve first, then shut down instrument power.
- Store the instrument in dry and ventilated environment.
Packing List — Open Cup Flash Point Tester
| No. | Description | Qty | Unit | Remarks |
|---|---|---|---|---|
| 1 | Open Cup Flash Point Tester Main Unit | 1 | Set | HF-TC-635 automatic type |
| 2 | Standard Test Cup | 1 | Pc | |
| 3 | Ignition Gas Connecting Hose | 1 | Pc | |
| 4 | Power Cable | 1 | Pc | AC220V |
| 5 | Printer Paper Roll | 2 | Roll | Spare |
| 6 | Operation Manual (Chinese & English) | 1 | Copy | |
| 7 | Calibration Certificate | 1 | Copy | |
| 8 | Shockproof Transport Case | 1 | Pc |
FAQ for Open Cup Flash Point Tester
Q1: What is the Open Cup Flash Point Tester used for?
A: It measures the open cup flash point of petroleum products following GB267-88 and GB3536-83 standards, applied for fuel safety assessment in power, petroleum, commodity inspection and research labs.
Q2: What is the measuring temperature range?
A: Measuring range: 40℃ ~ 400℃.
Q3: What is the repeatability accuracy?
A: Flash point ≤150℃: error ±1℃; Flash point ≥150℃: error ±3℃.
Q4: Does the tester work fully automatically?
A: Yes. It supports automatic heating control, automatic ignition sweep, flash point capture, result locking, automatic printing and automatic gas source shutoff.
Q5: What gas is required for ignition?
A: Liquefied gas is needed as the ignition fuel. Please check pipelines regularly to prevent gas leakage.
Q6: What power supply does the instrument require?
A: AC 220V, 50Hz, rated power 100VA.
Q7: What are the allowable operating environmental conditions?
A: Ambient temperature: 10℃ ~ 35℃, relative humidity ≤85%. Avoid strong airflow around the instrument during testing.
Q8: Can the test results be printed?
A: Yes. The built-in printer can output test data automatically after measurement completes.
Q9: What preparations should be done before testing?
A: Clean and dry the test cup, fill sample to the marked line, avoid bubbles; check gas tightness of gas pipeline and ensure stable power supply.
Q10: What safety precautions need attention?
A: Operate in well-ventilated space, keep combustibles away. Cut off the gas source first before powering off the instrument after testing.
Q11: Can this instrument carry out closed cup flash point test?
A: No. This model adopts open cup method only, not applicable for closed cup flash point measurement.
Q12: How to maintain the equipment after use?
A: Wait for cooling, clean the test cup, temperature probe and ignition assembly; keep the instrument in dry and ventilated storage.
