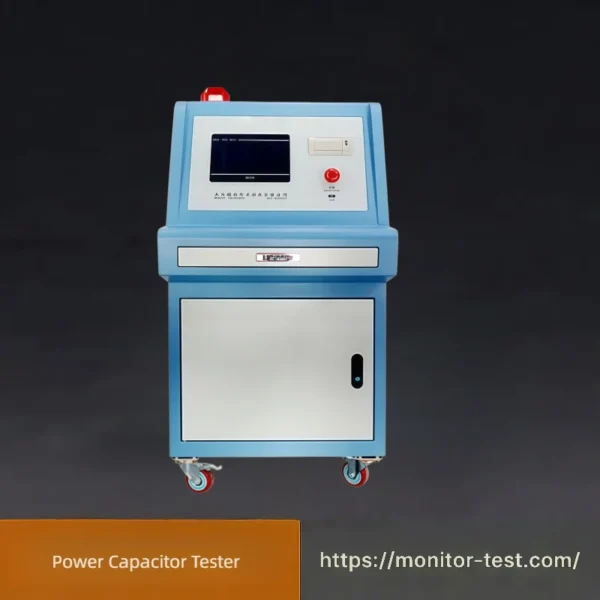

HF-PC-201 Power Capacitor Tester
This professional power capacitor tester performs standard charge and discharge tests for power capacitors. With four synchronous test channels and overvoltage & overcurrent protection, it precisely measures parameters to evaluate capacitor stability and service life.
Send your requirements, we will quote for you within 12 hours
Download datasheet (PDF · 230 KB)
This device applies DC power supply to perform charge and discharge tests on test capacitors. Designed and manufactured in compliance with Clause 4.15 of GB/T14472—2005 (Fixed capacitors for use in electronic equipment Part 14: Sectional specification – Fixed capacitors for electromagnetic interference suppression). It adopts Matsushita Electric timers and counters, features an output terminal for oscilloscope monitoring, built-in overcurrent & overvoltage protection circuits, and is equipped with a test box fitted with safety switches.
Main Technical Parameters
- Output DC voltage: 0 ~ 400V, continuously adjustable
- Digital display accuracy: ±3% ± 3 digits
- Test stations: 4 stations working synchronously
- 4 independent channels, charging current per channel: ≤ 1A
- Maximum capacitance of each tested capacitor: 1μF
- Maximum discharge rate: 100V/μs
- Tolerance: ±15%
- Timer range (charging & discharging duration): 0.1 ~ 999.9 seconds
- Timer accuracy: ±3%
- Counter range: 0 ~ 999999 times
- Counter accuracy: ±1 count
- Overcurrent & overvoltage protection: Protection thresholds can be continuously adjusted inside the device
- Reserved output port for oscilloscope monitoring
- Equipped with test box with safety switches
- Overall dimensions: approx. 600mm(L) × 600mm(D) × 1700mm(H)
- Operating power supply: AC220V±1%, 50Hz
Device Features
Identical to the product overview above: It is a DC-powered unit for capacitor charge-discharge testing, fully compliant with GB/T14472-2005 standards, equipped with Panasonic timing/counting modules, oscilloscope monitoring port, multi-layer safety protection circuits and safety-interlocked test box.
| Applicable Standard | Application Scope | Standard Accessories |
|---|---|---|
| GB/T 14472-2005 (IEC 60384-14:2001) | Fixed capacitors for EMI suppression, ceramic capacitors and related products | 1. 4-position test box ×1 2. Test lead set ×1 3. Power cord ×1 4. Operation manual ×1 5. Warranty card ×1 (1-year warranty) |
Operating Instructions for Power Capacitor Tester
Step 1: Pre-operation Preparation
- Place the device on a flat, well-ventilated indoor site; confirm ambient temperature and humidity meet the specified working conditions.
- Connect the power cord to AC220V mains power supply, check all circuits for no short circuit or loose wiring.
- Mount the 4-position test box, connect test leads between the tester and test box firmly.
Step 2: Parameter Setting
- Switch on the main power supply of the device, the display screen lights up to enter standby mode.
- Set target DC output voltage (0~400V adjustable), charging & discharging time (0.1~999.9s) via the control panel.
- Configure overcurrent and overvoltage protection thresholds according to tested capacitor specifications to avoid component damage.
- Set test cycle counting times as required.
Step 3: Install Test Samples & Start Test
- Open the safety switch cover of the test box, install capacitors to be tested on each of the 4 stations, close the safety cover tightly.
- Press the start button; four channels run synchronously to automatically complete charging and discharging cycles.
- Real-time voltage, time and cycle counts are displayed on the digital screen; you can connect an oscilloscope to the reserved port to observe waveform changes.
Step 4: Test Completion & Shutdown
- When the preset test cycles finish, the device stops running automatically and saves test data.
- Cut off the output voltage first, open the safety test box after complete capacitor discharge, then take down tested capacitors.
- Turn off the main power switch, unplug the power cord, tidy up test wires and accessories.
Safety Notes
- Never touch capacitor terminals during charging/discharging to prevent electric shock.
- Stop the test immediately once overvoltage/overcurrent alarm triggers.
- Do not test capacitors exceeding the maximum 1μF capacity limit.
FAQ for Power Capacitor Charge-Discharge Tester
Q1: Which standard does this capacitor tester comply with?
A1: It fully conforms to GB/T 14472-2005 (IEC 60384-14:2001), designed following Clause 4.15 for EMI suppression fixed capacitors.
Q2: How many capacitors can be tested at the same time?
A2: Equipped with 4 synchronous test channels. Four capacitors can undergo charge-discharge cycling tests simultaneously to improve testing efficiency.
Q3: What is the adjustable range of output DC voltage?
A3: The DC output voltage is continuously adjustable from 0V to 400V, which can meet the test requirements of most ceramic and EMI suppression capacitors.
Q4: What protection functions does the device have?
A4: It supports adjustable overcurrent and overvoltage protection thresholds. It will automatically cut off the circuit to protect both the device and test samples once abnormal conditions occur.
Q5: Can I observe the voltage waveform during testing?
A5: Yes. An exclusive output port is reserved for oscilloscope connection, allowing real-time monitoring of charge and discharge waveforms on screen.
Q6: What are the limits of timer and counter?
A6: Timer range: 0.1~999.9 seconds with ±3% accuracy; counter can record up to 999999 test cycles accurately.
Q7: What is the maximum capacitance available for testing?
A7: The maximum capacitance of a single tested capacitor shall not exceed 1μF.
Q8: What accessories are delivered together with the machine?
A8: 4-position test box, a set of test cables, power cord, user manual and warranty card with one-year free maintenance service.
Q9: What is the required working power supply?
A9: Rated input power is AC 220V ±1%, 50Hz, which fits common industrial workshop power supply conditions.
Q10: Why is the safety switch installed on the test box?
A10: For electric shock prevention. The test loop will be disconnected automatically once the box is opened during operation, ensuring operator personal safety.
