HF-W-704 Circuit Breaker Monitoring

Overview of Circuit Breaker Monitoring

Circuit breakers installed inside switch cabinets undergo frequent mechanical and electrical operations during service, making them prone to malfunctions that may trigger accidents and substantial economic losses. Online condition monitoring for circuit breakers serves as a core technology to boost the reliability of power transmission and distribution equipment.

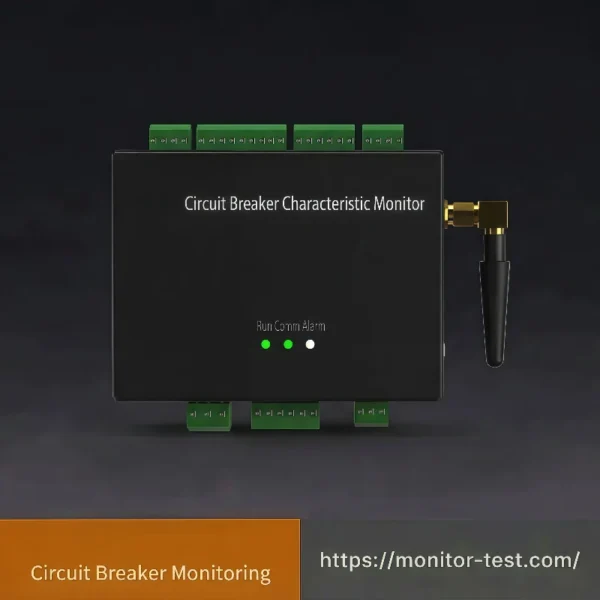

This online monitoring device for circuit breaker mechanical characteristics is specially developed to meet the mechanical condition monitoring demands of circuit breakers installed in conventional AC and DC switchgear cabinets.
By collecting and analyzing data including opening/closing coil current, switching moment of main contacts and charging motor current, the equipment realizes real-time monitoring and condition evaluation of circuit breaker mechanical performance, and provides authentic and reliable data support for condition-based maintenance and routine upkeep of circuit breakers.

System Composition

The online monitoring system for circuit breaker mechanical characteristics consists mainly of sensors (Hall sensors and AC current transformers), front-end monitoring units, optional main monitoring hosts, and background monitoring system software. See the attached block diagram for system architecture.

Working Process of Mechanical Characteristic Monitoring System

1. The front-end monitoring unit controls current transformers and Hall sensors to collect parameters such as opening/closing coil operating current, charging motor current and three-phase startup characteristics.
2. The front-end unit transmits monitoring data to the multi-functional monitoring host via wired or wireless communication as customized. The host analyzes the data, generates graphical and numerical monitoring results, and displays data on-site.
3. The multi-functional host uploads monitoring results to the background data center for storage and forwarding. Data can be transmitted to the user’s control platform or other designated systems per project requirements.
4. The front-end unit exchanges data with the multi-functional host via RS485, optical fiber or other wireless protocols. The host connects to the background server through Ethernet or optical fiber. The background server then uploads data to the user-specified platform over the internal network in standard IEC 61850 format.

System Functions

Basic Functions

• Monitor opening and closing coil current and display corresponding signal waveforms
• Store standard reference waveforms, support comparison display and view raw measured waveform data
• Support multi-channel synchronous measurement with no fewer than 3 channels
• Strong anti-interference performance to adapt to high-voltage and heavy-current working conditions inside switch cabinets
• Adopt hardware filtering and digital filtering to eliminate clutter noise
• Real-time temperature monitoring for circuit breakers within switch cabinets
• Intelligent diagnosis and analysis to calculate key indicators from collected waveforms:
  1. Peak current
  2. Cumulative opening/closing operation times and fault trip statistics
  3. Comparative analysis between measured waveforms, standard templates and historical records

Advanced Functions

• Three-phase synchronism detection
• Initial tripping time measurement
• Waveform recording of charging motor current and breaker opening/closing travel curves
• Intelligent fault diagnosis with an expert database built on historical data and logical reasoning algorithms

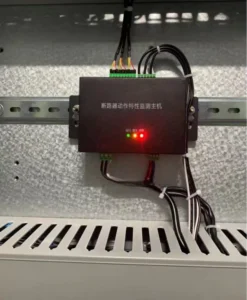

On-site installation & operation

Why Choose Us

We deliver stable, anti-interference circuit breaker monitoring equipment with full technical service and flexible system integration. Our professional monitoring system prevents sudden breaker failures, saves maintenance expenditure and boosts the safety and intelligence level of your power distribution system.

FAQ

Q1: What is circuit breaker monitoring used for?

A1: It tracks real-time mechanical and electrical operating data of breakers inside switchgear, detects hidden faults in advance and avoids unexpected power outages.

Q2: What key data can this monitoring system collect?

A2: It captures opening/closing coil current, charging motor current, main contact action time, temperature, operation counts and three-phase synchronization status.

Q3: Can the device resist strong interference in high-voltage switch cabinets?

A3: Yes. It adopts both hardware filtering and digital filtering to suppress clutter interference and adapt to high-voltage and heavy-current environments.

Q4: Does it support data uploading to the user’s existing monitoring platform?

A4: It complies with IEC 61850 protocol, and supports RS485, optical fiber and wireless transmission to connect with background control systems.

Q5: Is on-site installation and commissioning service available?

A5: We provide complete on-site mounting, debugging and operation training for overseas and domestic projects.

Q6: Can the system compare real-time waveforms with standard historical curves?

A6: Standard waveforms can be stored locally. The system automatically compares measured data with reference curves to judge abnormal conditions.

Q7: How many measurement channels does the monitoring unit support?

A7: It supports multi-channel synchronous sampling with no less than 3 channels to meet three-phase breaker monitoring demands.

Q8: Will this system help reduce daily maintenance work?

A8: It realizes unattended online monitoring, cuts frequent manual inspections and reduces overall operation and maintenance costs.

Q9: Is the monitoring system compatible with most mainstream switchgear breakers?

A9: Sensors and front-end units are universally designed and can be retrofitted to most existing AC and DC circuit breakers.

Q10: What kind of fault alarms can the system trigger?

A10: It gives early warnings for coil abnormality, asynchronous closing, excessive operation times, over-temperature and charging mechanism failure.
